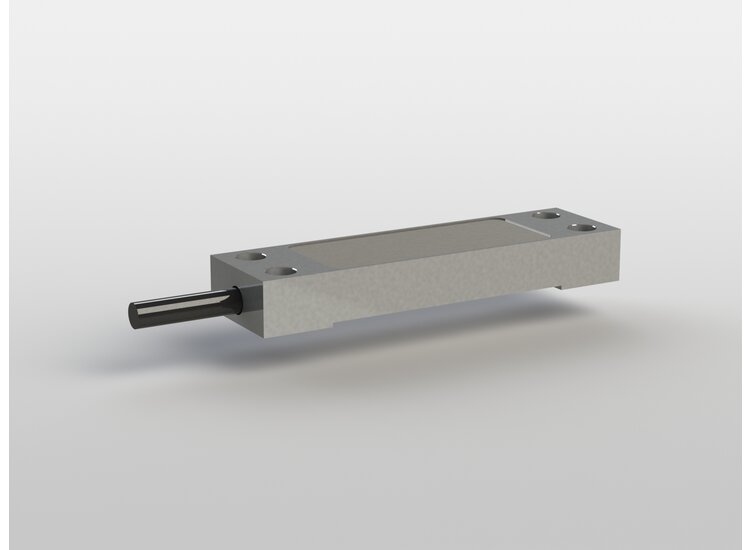

Strain sensor 90mm x 25mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Strain sensor 90mm x 25mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Strain sensor 90mm x 25mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Strain sensor 90mm x 25mm x 11mm, integrated Electronic GSV-15L, 0-10V output signal, 5m cable
Art.Nr.: 3649

DA90e 010

  • type: strain sensor

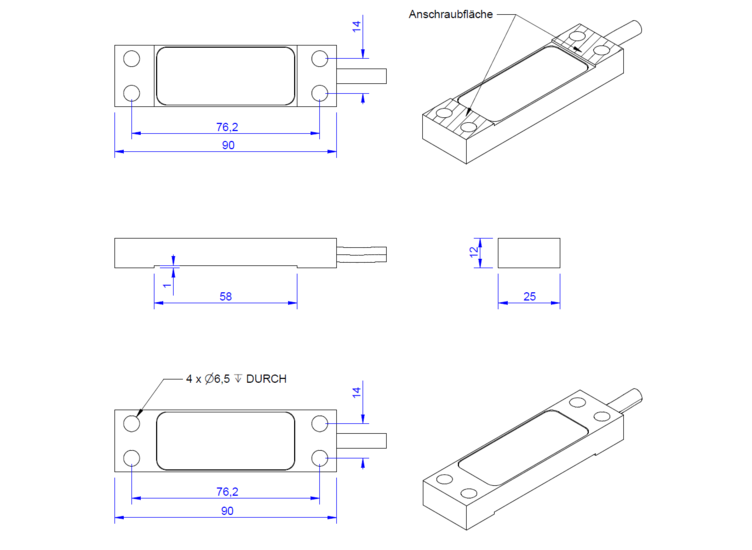

  • dimensions: 90 mm x 25 mm x 12 mm
  • mounting: 4x M6
  • connection: 5m cable Unitronic FD CP TP Plus 7x0,14
  • material: Steel, zinc-plated
  • integrated amplifier: GSV-15L 010/105/3,5/24
  • Digital Input for automatic Zero Adjustment to 0 V
  • Digital Input for autoscale
  • Digital Threshold output

Accessories:

  • 4 Bolts M6x20, strenght category 10.9
  • Activator-11 and Loxeal-8521
All details
Select variant:
Artikelbeschreibung
  • type: strain sensor
  • dimensions: 90 mm x 25 mm x 12 mm
  • mounting: 4x M6
  • connection: 5m cable Unitronic FD CP TP Plus 7x0,14
  • material: Steel, zinc-plated
  • integrated amplifier: GSV-15L 010/105/3,5/24
  • Digital Input for automatic Zero Adjustment to 0 V
  • Digital Input for autoscale
  • Digital Threshold output

Accessories:

  • 4 Bolts M6x20, strenght category 10.9
  • Activator-11 and Loxeal-8521
Product description

Thanks to its closed construction and stainless steel design, the DA90 strain sensor is suitable for measuring strain and force on machine elements and components in harsh environments.

Install by screwing on with 4 M6 screws. Example applications include force supervision, fill level measurement and strain analysis on steel components. Mechanical strain on the component is transferred to the strain sensor using forced closure via the 4 fixing screws and transformed into an electrical output signal.

Output signal and thermal behaviour and transmission ratio depend on the geometry and combination of materials of the strain sensor and component. Therefore, the sensor is calibrated by subjecting the component to a certain degree of force.

The DA90e strain sensor contains a 0...10V or 4...20mA measuring amplifier with zero-setting and scale function, as well as threshold value output.
