        Art.Nr.: 10007

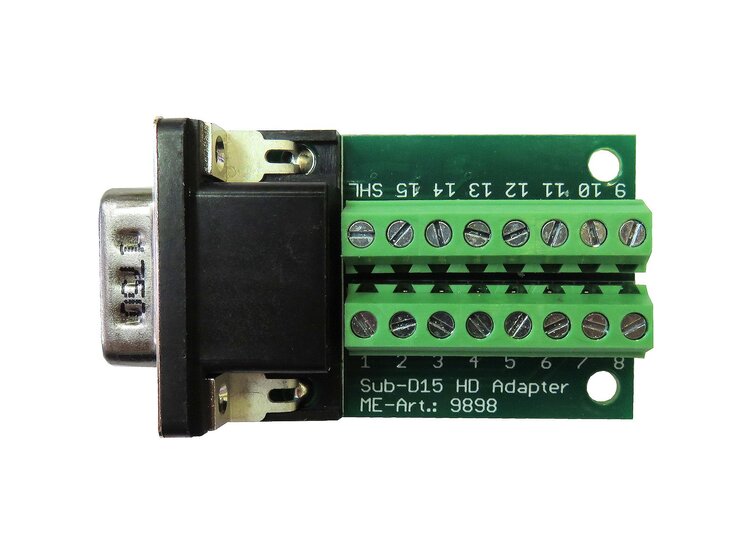

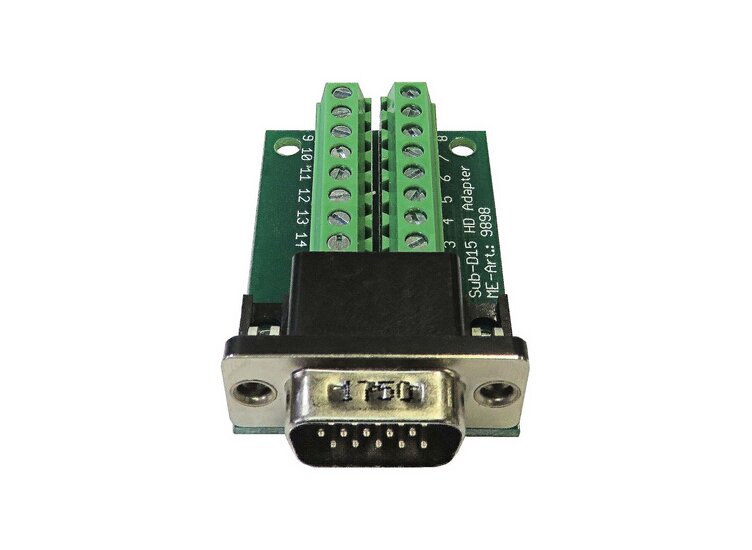

        Adapter SubD15HD

        • Adapter D-Sub terminal block;
        • D-Sub 15HD pin plug;
        • HD - high density, 3 rows of pins;
        • 2 x 8-pin terminal block (15 pins connected);
        • Pitch 3.81 mm;
        • Dimensions (Lxwxh): 54 x 31 x 15 mm
        • Use: accessory for GSV 8DS SubD15HD

        This adapter is suitable for special industrial applications, such as e.g. for connecting individual cable strings with open cable ends.

        All details
        Add to Cart
        Product description
        Artikelbeschreibung
        • Adapter D-Sub terminal block;
        • D-Sub 15HD pin plug;
        • HD - high density, 3 rows of pins;
        • 2 x 8-pin terminal block (15 pins connected);
        • Pitch 3.81 mm;
        • Dimensions (Lxwxh): 54 x 31 x 15 mm
        • Use: accessory for GSV 8DS SubD15HD

        This adapter is suitable for special industrial applications, such as e.g. for connecting individual cable strings with open cable ends.
