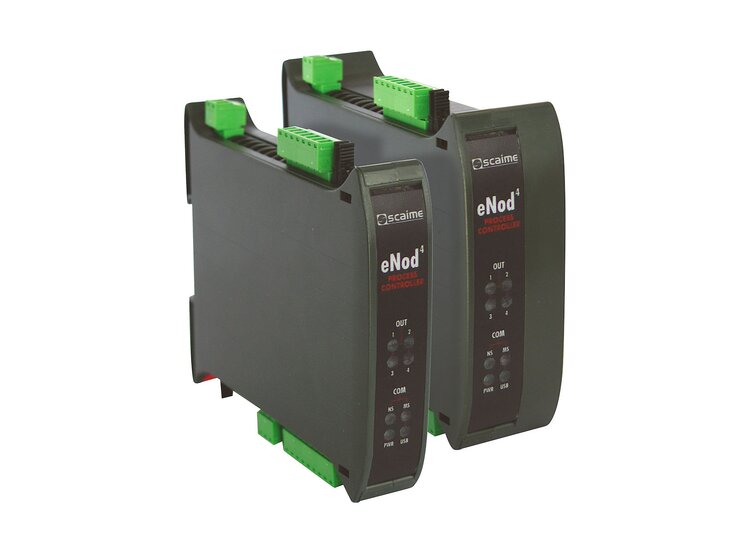

        The 1-channel eNod4 weighing transmitter in DIN rail housing with USB and Profinet interfaces
        The 1-channel eNod4 weighing transmitter in DIN rail housing with USB and Profinet interfaces
        Art.Nr.: 11412

        eNod4-T-DI00-000-EP

        • 1-channel measuring amplifier with Profinet fieldbus
        • up to 1600 Sample/s
        • programmable digital filters
        • 2 digital inputs
        • 4 digital outputs
        • USB port for PC
        • ProfiNET interface
        All details
        Select variant:
        Add to Cart
        Product description
        Instructions
        Software
        Artikelbeschreibung
        • 1-channel measuring amplifier with Profinet fieldbus
        • up to 1600 Sample/s
        • programmable digital filters
        • 2 digital inputs
        • 4 digital outputs
        • USB port for PC
        • ProfiNET interface
        Product description

        The eNod4-T measuring amplifier is suitable for measuring strain gauge load cells and force sensors. With this 1-channel measuring amplifier, up to 8 load cells can be connected in parallel. The eNod4 weighing transmitter in the order variant eNod4-T-DI00-000-EP is designed in a DIN rail housing and contains digital inputs and outputs. The measurement data is evaluated on the PC via the USB connection or via an external display on request.

        Recommended products

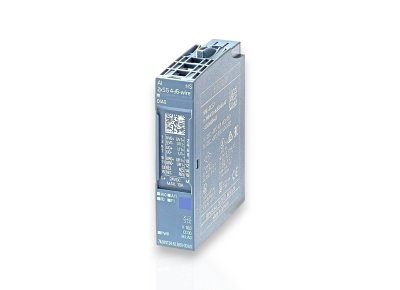

        AI-2xSG

        Please log in, to view prices.
        PRODUCT DETAILS

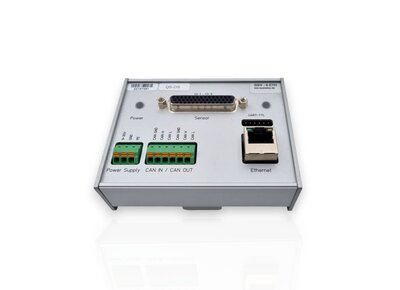

        6-channel digital amplifier GSV-6H6 with CANbus, Ethernet and UART
