The GSV-6T3 CAN/M12 measuring amplifier is a 3-channel measuring amplifier for strain gauges with a CAN interface and USB port.

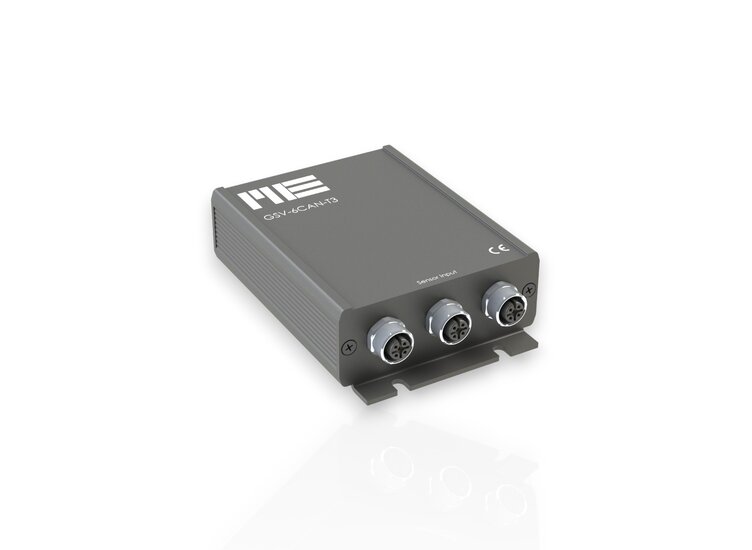

Sensors with full-bridge strain gauges are connected via the 5-pin M12 sockets on the front.

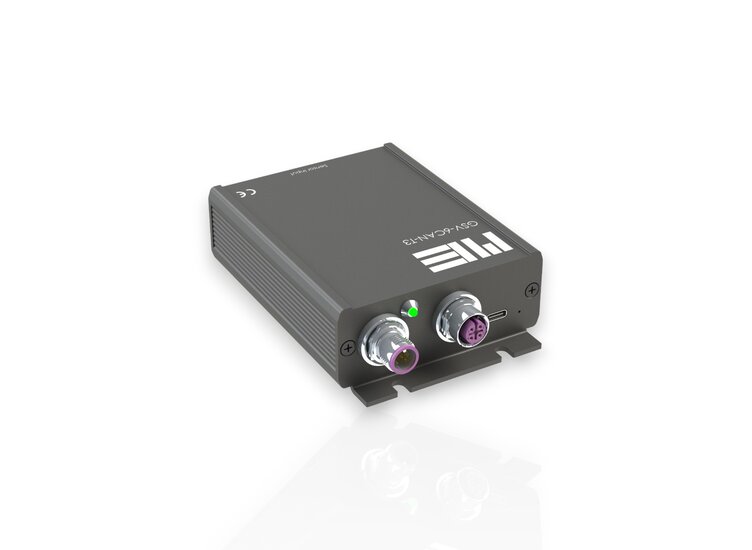

An M12 socket and an M12 plug are available on the back for connecting the CAN bus line.
The GSV-6T3 CAN/M12 measuring amplifier is supplied with 18 V DC to 28 V DC via the CAN bus line. Alternatively, the GSV-6T3 CAN/M12 can be supplied with 5 V DC via the USB interface.
Measurement data can be recorded both via the integrated USB port and via the CANbus using the GSVmulti software. The GSVmulti software allows measurement data to be read, recorded and visualized via the CANbus using a “PCAN-USB” converter.
The measuring amplifier GSV-3CAN-T3 is factory-configurable for the connection of strain gauge quarter bridges 120 Ohm, 350 Ohm or 1kOhm in three-wire technology.
