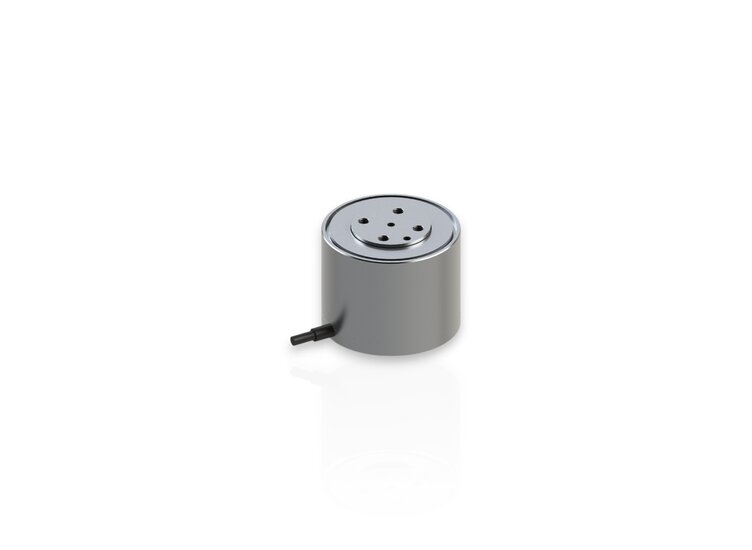

        Miniature 3-Axis Force Sensor, accuracy class 0.5, 500 mN ...10 N, Ø35 mm x 28 mm, 3m cable
        Miniature 3-Axis Force Sensor, accuracy class 0.5, 500 mN ...10 N, Ø35 mm x 28 mm, 3m cable
        Art.Nr.: 11683

        K3D35 500mN

        • Type: 3-axis force sensor
        • nominal force: 0.5 N
        • accuracy class: 0.5

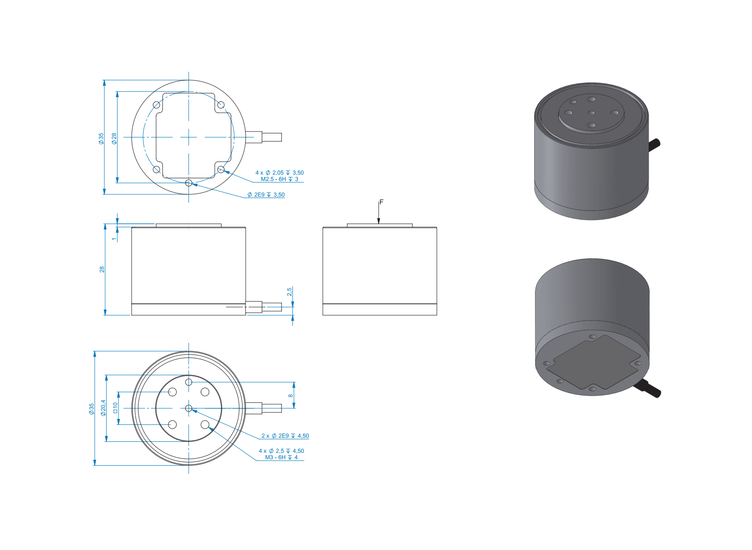

        • dimensions: Ø35 mm x 28 mm
        • force introduction: 4 x female thread M3, 2 x pass hole Ø2 mm E9
        • connection: 3m STC-32T-12
        • material: aluminum housing
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models
        2d drawing
        Instructions
        Artikelbeschreibung
        • Type: 3-axis force sensor
        • nominal force: 0.5 N
        • accuracy class: 0.5
        • dimensions: Ø35 mm x 28 mm
        • force introduction: 4 x female thread M3, 2 x pass hole Ø2 mm E9
        • connection: 3m STC-32T-12
        • material: aluminum housing
        Highlights
        • miniature 3-axis force sensor
        • versions from 500mN
        • compact design
        Product description

        The K3D35 3-axis sensor is suitable for force measurement in three perpendicular axes.
        The K3D35 miniature force sensor is characterized by a particularly compact design with a footprint of Ø35mm and a low overall height of only 28mm.
        Despite the small measuring range of 0.5 N, the sensor needs a stiffness equivalent to a sensor for 10 N.
