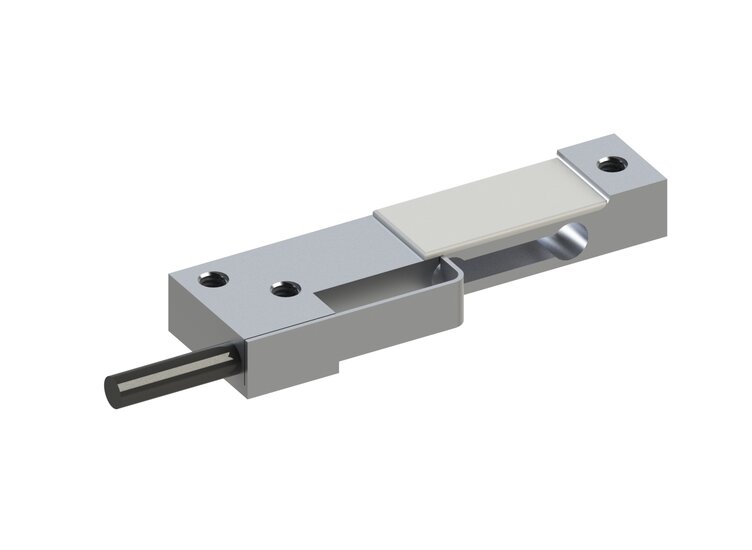

        KD39 Bending beam force sensor - ME-Systems
        KD39 Bending beam force sensor - ME-Systems
        Art.Nr.: 4296

        KD39 5N

        • type: double bending beam force sensor
        • nominal force: 5 N
        • accuracy class: 0,1
        • dimensions: 39 mm x 12 mm x 6 mm
        • force transmission: 1x female thread M2,5x0,45
        • connection: 1 m STC-31V-4
        • material: Aluminium alloy
        • weight: 5 g
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models

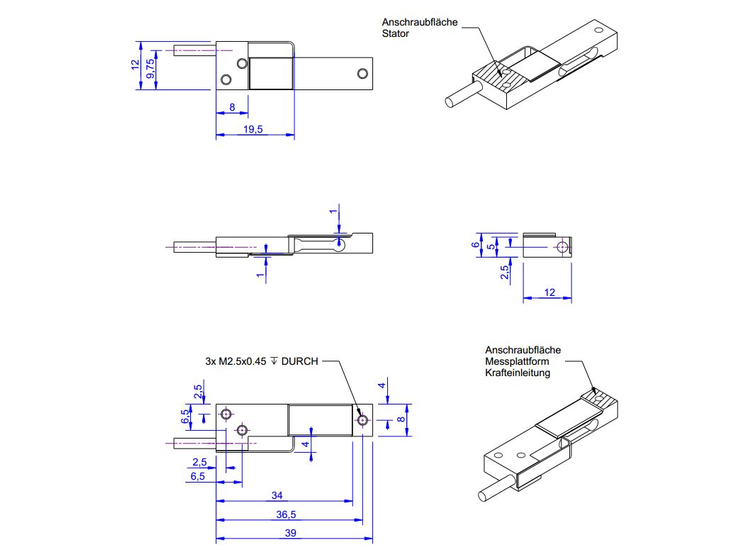

        2d drawing
        Artikelbeschreibung
        • type: double bending beam force sensor
        • nominal force: 5 N
        • accuracy class: 0,1
        • dimensions: 39 mm x 12 mm x 6 mm
        • force transmission: 1x female thread M2,5x0,45
        • connection: 1 m STC-31V-4
        • material: Aluminium alloy
        • weight: 5 g
        Product description

        The force sensor KD39 is especially suitable for integration in flat measuring plattforms, due to its only 6mm height and 12mm width. In measuring platforms three pieces of KD39 have a measuring plate.
