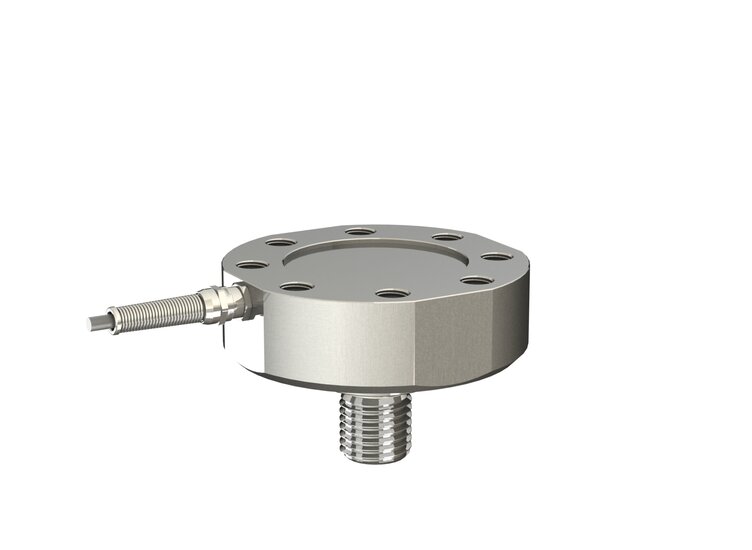

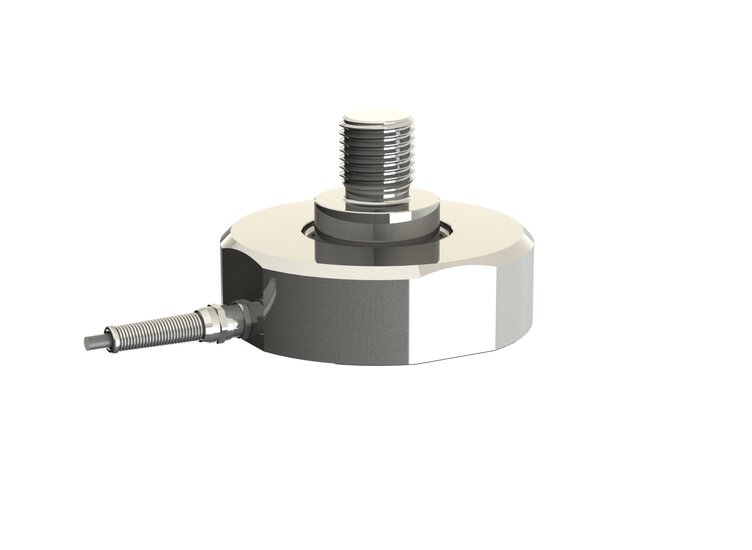

The KM150z force sensor is a tension/compression force sensor in diaphragma construction. He is characterized by
- a low height for the sensor body,

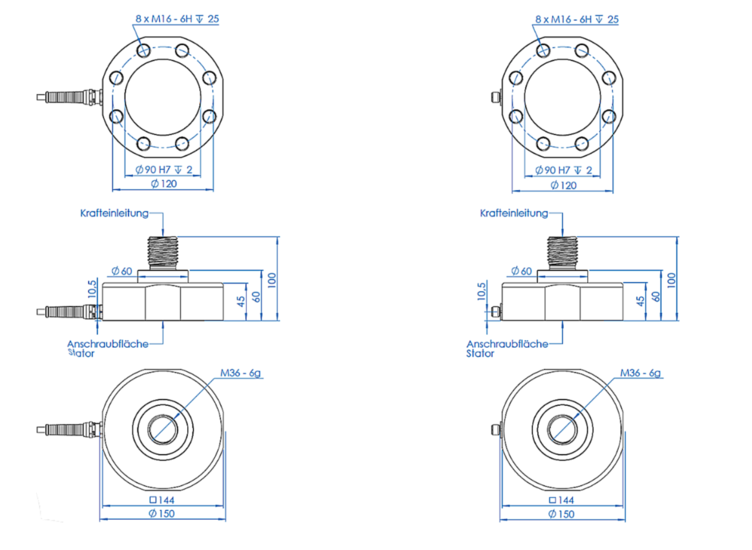

- a central M36 external thread for force introduction for the 150 kN variant
- a central M42 external thread for force introduction for the 200 kN variant
- and 8x internal thread M16 for attaching the sensor body.
The 8x M16 internal threads allow the installation of additional adapters, such as a central M36 or M42 internal thread or a central M36 or M42 external thread.
All variants are available with a permanently installed connection cable, Lapp drag chain cable FD/CP/Plus, or with a permanently installed M12 round plug connector, 4-pin.
The protection class of the sensor is IP 67.
