        acceleration sensor, ±2 g/ ±6 g, 0 Hz...200 Hz, 70,5mm x 40mm x 15mm, 3m integral cable
        acceleration sensor, ±2 g/ ±6 g, 0 Hz...200 Hz, 70,5mm x 40mm x 15mm, 3m integral cable
        Art.Nr.: 10479

        A3S 4030-002

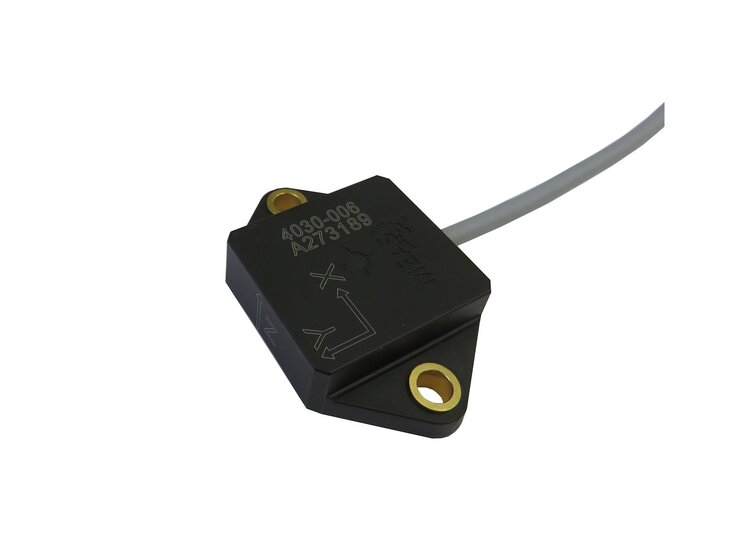

        • Type: 3 axial DC-Response acceleration sensor
        • capacitive Silicon MEMS Element
        • nominal acceleration: 2 g
        • limit frequency: 200 Hz
        • Analog output signal: ± 2 V
        • sensitivity: 1000 mV/g / 333 mV/g

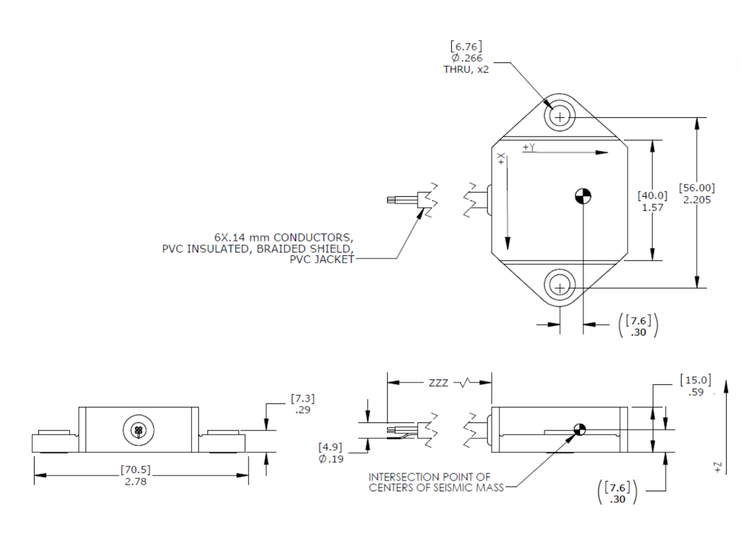

        • dimensions: 70,5 mm x 40 mm x 15 mm
        • mounting: 2x through hole 6,77 mm
        • connection cable: 3m PVC 6x0.14 mm, #24 AWG
        • material: Nylon 6-6
