        Art.Nr.: 4475

        DA115-mag

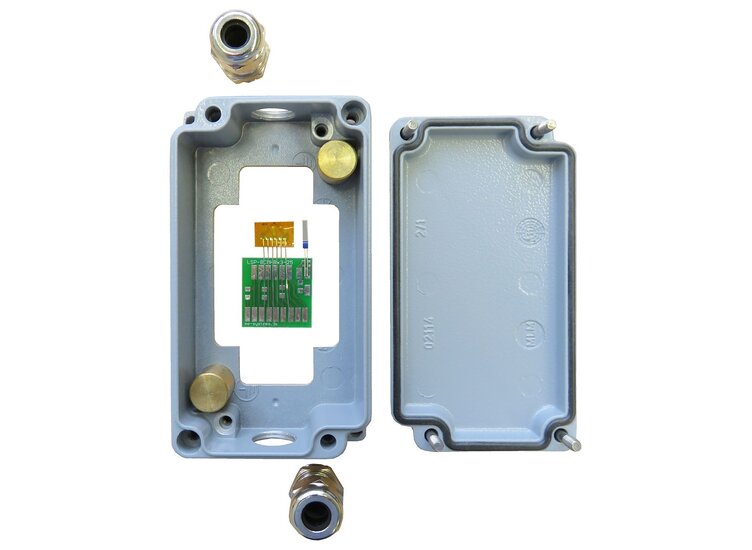

        • Housing for covering strain gauges;
        • 115mm x 64mm x 36mm (Lx WxH);
        • cutout 44mm x 50mm in the housing base;
        • 2x cable glands M16;
        • 2x rod magnet diameter 13mm

        included in the scope of supply:

        • aluminum housing IP66 with cutout for strain gauges;
        • glued-in magnets;
        • 2x cable gland PG9;
        • And 1x blind plug PG9;

        recommended accessories:

        • Straingage Fullbridge;
        • Straingage Single grid
        • Straingage Rosette 0°, 45°, 90°
        • LSP-BCMHBx3;
        • LSP-10s;

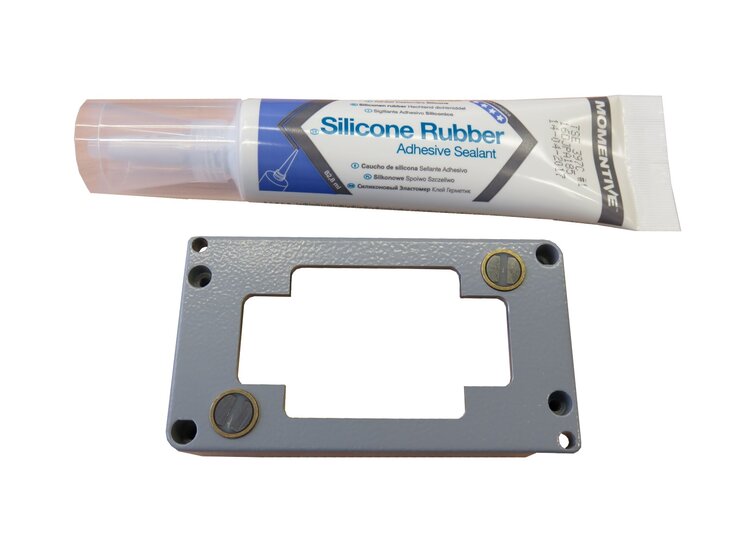

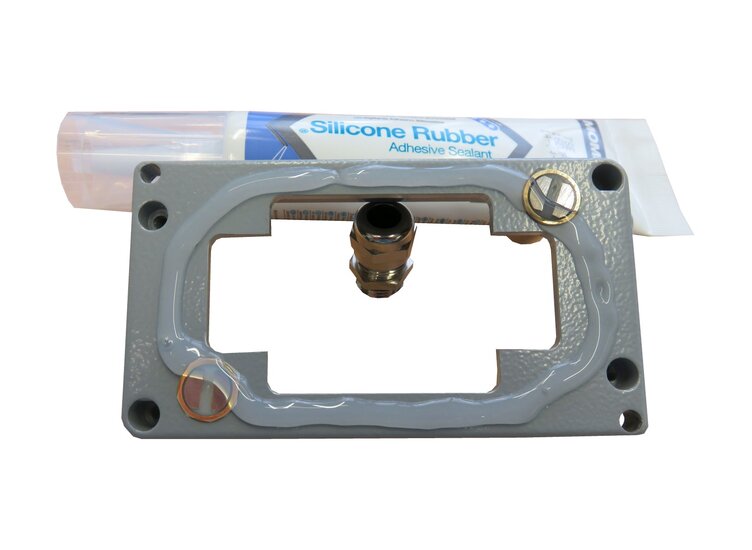

        • Silicon TSE397C;
        • PT1000 chip resistor
        All details
        Add to Cart
        Product description
        Artikelbeschreibung
        • Housing for covering strain gauges;
        • 115mm x 64mm x 36mm (Lx WxH);
        • cutout 44mm x 50mm in the housing base;
        • 2x cable glands M16;
        • 2x rod magnet diameter 13mm

        included in the scope of supply:

        • aluminum housing IP66 with cutout for strain gauges;
        • glued-in magnets;
        • 2x cable gland PG9;
        • And 1x blind plug PG9;

        recommended accessories:

        • Straingage Fullbridge;
        • Straingage Single grid
        • Straingage Rosette 0°, 45°, 90°
        • LSP-BCMHBx3;
        • LSP-10s;
        • Silicon TSE397C;
        • PT1000 chip resistor
