        Art.Nr.: 5050

        Factory calibration certificate Nm/50/5

        • Calibration of the torque sensor;
        • 3 measuring series with 5 measuring points each;
        • Measurement of the span, the relative characteristic deviation and the relative linearity deviation;
        • Measurement of the insulation resistance, the sensor characteristic value, the zero deviation of the sensor;
        • Measurement of the zero point return error;
        • Proof of traceability to DAkkS;
        • Placing a calibration mark on the device;
        • Maximum torque alternatively 0.025Nm ... 50Nm;
        • Right torque: 0% -25% -50% -75% -100% -0%;
        • Left torque: 0% -25% -50% -75% -100% -0%;
        All details
        Add to Cart
        Product description
        Artikelbeschreibung
        • Calibration of the torque sensor;
        • 3 measuring series with 5 measuring points each;
        • Measurement of the span, the relative characteristic deviation and the relative linearity deviation;
        • Measurement of the insulation resistance, the sensor characteristic value, the zero deviation of the sensor;
        • Measurement of the zero point return error;
        • Proof of traceability to DAkkS;
        • Placing a calibration mark on the device;
        • Maximum torque alternatively 0.025Nm ... 50Nm;
        • Right torque: 0% -25% -50% -75% -100% -0%;
        • Left torque: 0% -25% -50% -75% -100% -0%;
        Recommended products

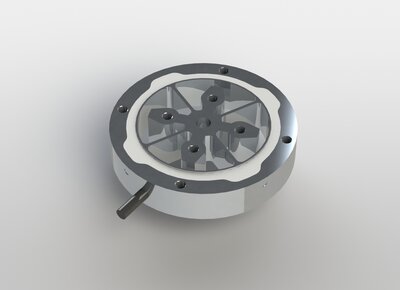

        Torque sensor, 150 mNm ... 500mNm, accuracy class 0,1, Ø 50mm x 10mm 2m cable

        TD50

        Please log in, to view prices.
        PRODUCT DETAILS

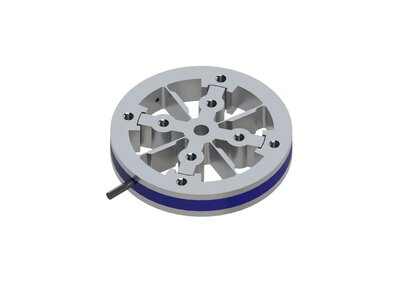

        Torque sensor, 25mNm ... 1Nm, accuracy class 0,1; Ø 70mm x 10mm 2m cable

        TD70

        Please log in, to view prices.
        PRODUCT DETAILS
        Torque sensor, 5 Nm ... 50Nm, accuracy class 0,1; Ø 110mm x 13mm, 3m cable

        TD110a

        Please log in, to view prices.
        PRODUCT DETAILS

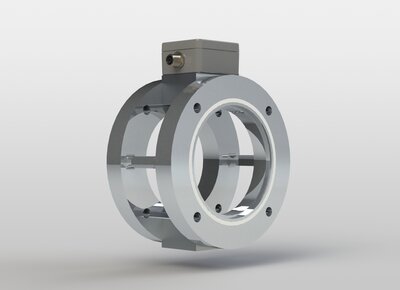

        Torque sensor, 10Nm ... 50Nm, accuracy class 0,1; Ø 175mm x 98mm, M12 round plug

        TD175

        Please log in, to view prices.
        PRODUCT DETAILS
        Torque sensor, 10Nm ... 50Nm, accuracy class 0,1; Ø 175mm x 98mm, M12 round plug

        TD175e

        Please log in, to view prices.
        PRODUCT DETAILS

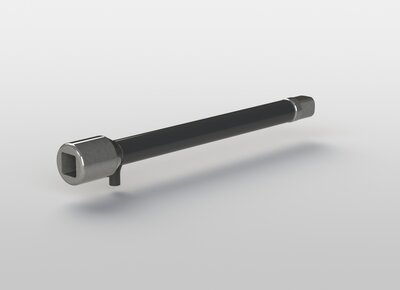

        Torque sensor, 15Nm ... 600Nm, accuracy class 1%, 101,5mm x Ø 20mm ...200 mm x Ø43 mm, outer and inner square 1/4

        TA125

        Please log in, to view prices.
        PRODUCT DETAILS
        TS110a Torque sensor - ME-Systeme

        TS110a

        Please log in, to view prices.
        PRODUCT DETAILS

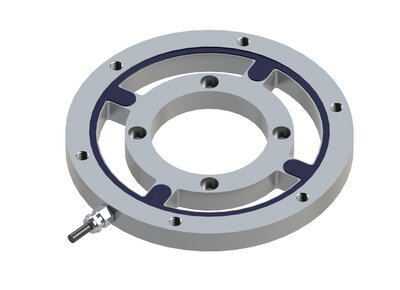

        Torque sensor, 50 Nm ... 500 Nm, accuracy class 0,1; Ø170mm x 16mm, 5m cable

        TS170 50Nm

        Please log in, to view prices.
        PRODUCT DETAILS

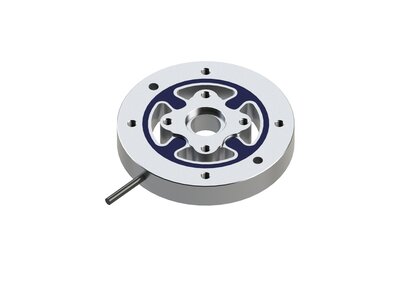

        Torque sensor, 2 Nm ... 10 Nm, accuracy class 0,1; Ø 70mm x 10mm 2m cable
