        analog measuring amplifier as a printed circuit board for sensors with straingages. Analogue output -10V...+10V, limiting frequency 250Hz, input sensitivity 2.0 mV/V.
        analog measuring amplifier as a printed circuit board for sensors with straingages. Analogue output -10V...+10V, limiting frequency 250Hz, input sensitivity 2.0 mV/V.
        analog measuring amplifier as a printed circuit board for sensors with straingages. Analogue output -10V...+10V, limiting frequency 250Hz, input sensitivity 2.0 mV/V.
        analog measuring amplifier as a printed circuit board for sensors with straingages. Analogue output -10V...+10V, limiting frequency 250Hz, input sensitivity 2.0 mV/V.

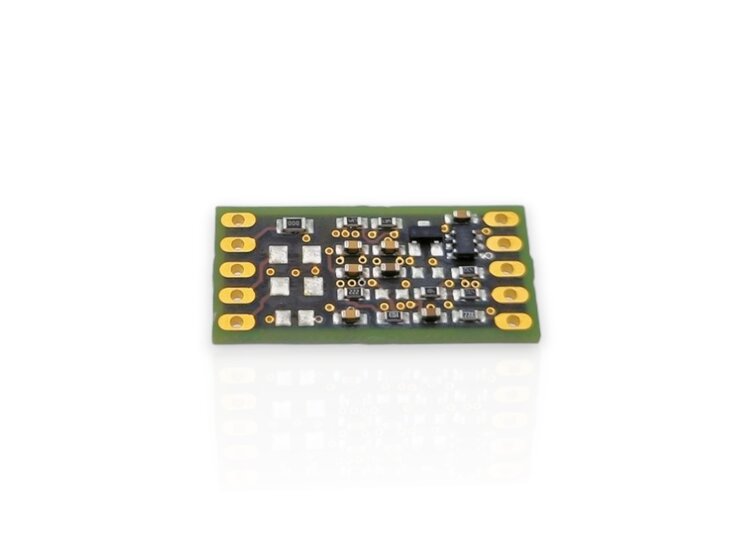

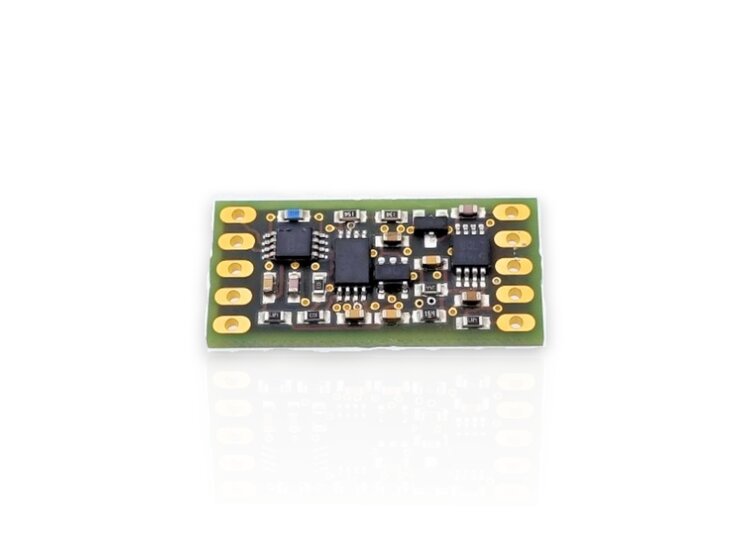

        Art.Nr.: 5157

        GSV-14L 03-1,5/1k/2

        • DMS measuring amplifier as a circuit board;
        • Dimensions: 13 mm x 27 mm x 5 mm;

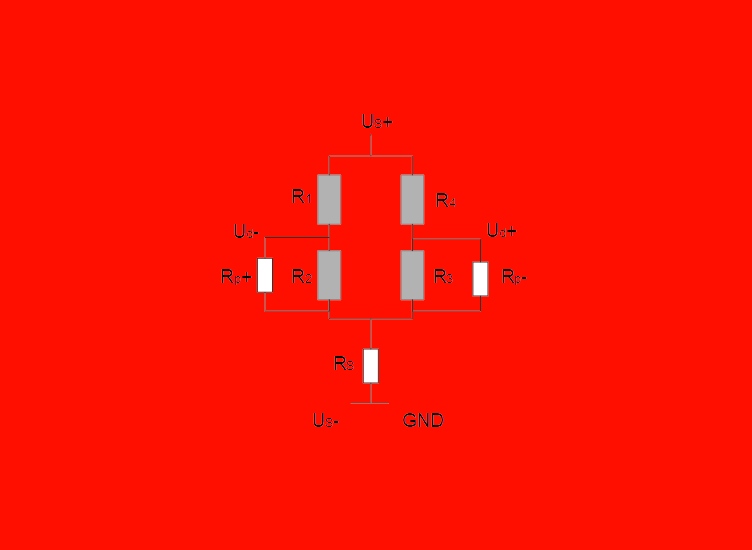

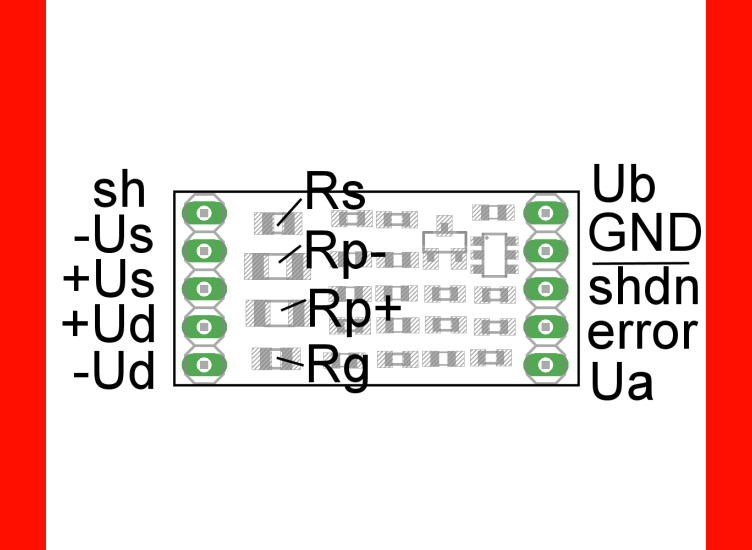

        • Zero adjustment via resistors;
        • Measuring range via resistors (±2 mV/V ex works);
        • Bridge supply 2.8V;
        • Analog output 0...3V;
        • Zero point at 1.5 volts; Stroke ±1.25 volts
        • Bessel filter 3rd order, 1 kHz;
        • Power supply 3.4V ... 10V DC;
        • Weight 3 g;
        All details
        Add to Cart
        Product description
        Datasheet
        Instructions
        Artikelbeschreibung
        • DMS measuring amplifier as a circuit board;
        • Dimensions: 13 mm x 27 mm x 5 mm;
        • Zero adjustment via resistors;
        • Measuring range via resistors (±2 mV/V ex works);
        • Bridge supply 2.8V;
        • Analog output 0...3V;
        • Zero point at 1.5 volts; Stroke ±1.25 volts
        • Bessel filter 3rd order, 1 kHz;
        • Power supply 3.4V ... 10V DC;
        • Weight 3 g;
        Highlights
        • ideal for IoT / LoRaWAN / battery operation
          Operating voltage 3.4 V ... 10 V
          Current consumption 9 mA with 350 Ohm DMS, 3mA with 1000 Ohms Strain Gauge
          Digital input ShutDown
          Digital output "Error" if the minimum operating voltage is not reached
