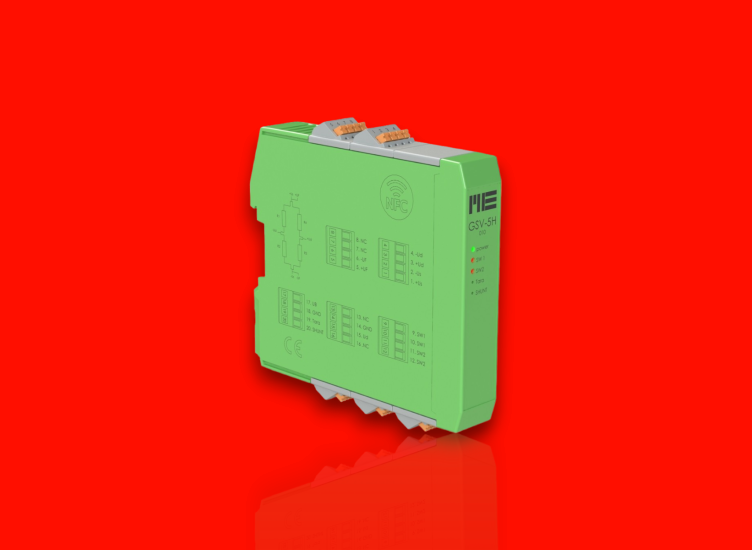

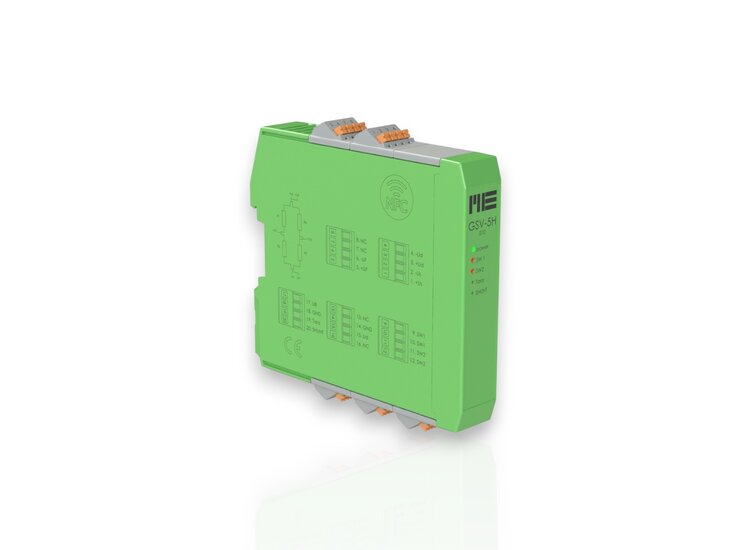

        1-channel measuring amplifier with ±10V or 4-20mA output signal, 10Hz...10kHz low-pass filter and 2 threshold sensors for DIN rail mounting
        1-channel measuring amplifier with ±10V or 4-20mA output signal, 10Hz...10kHz low-pass filter and 2 threshold sensors for DIN rail mounting
        Art.Nr.: 14831

        GSV-5H

        • Strain gauge measuring amplifier in a DIN rail housing;
        • 19,5 mm x 117 mm x 111 mm
        • 16 plug-in/clamp connections;
        • Analog output ±10V;
        • 2 threshold outputs;
        • Offset configurable;
        • Cut-off frequency 250Hz;
        • 4 input sensitivities 4/2/1/0.5 mV/V configurable;
        • Taring function via control line;
        • Supply voltage 11V..28V DC;
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models
        2d drawing
        Artikelbeschreibung
        • Strain gauge measuring amplifier in a DIN rail housing;
        • 19,5 mm x 117 mm x 111 mm
        • 16 plug-in/clamp connections;
        • Analog output ±10V;
        • 2 threshold outputs;
        • Offset configurable;
        • Cut-off frequency 250Hz;
        • 4 input sensitivities 4/2/1/0.5 mV/V configurable;
        • Taring function via control line;
        • Supply voltage 11V..28V DC;
        Highlights
        • Zero setting function via control line
        • 250 Hz filter in the standard version
        • 10 Hz, 2.5 kHz or 10 kHz filter configurable (solder bridges)
        • continuous analog signal flow, suitable for vibration analysis
        • Measuring range configurable in 4 levels via NFC/smartphone APP (4mV/V, 2mV/V, 1 mV/V, 0.5mV/V)
        • Output signal ±10V
        • 4- and 6-wire technology
        • 2 threshold value transmitters, galvanically decoupled, configurable via NFC/smartphone APP
        • Power supply for up to 8 full bridges of 350 ohms each
        • Connection of half and full bridges as an option
