Art.Nr.: 8334

GSV-8DS CAN/SubD44HD

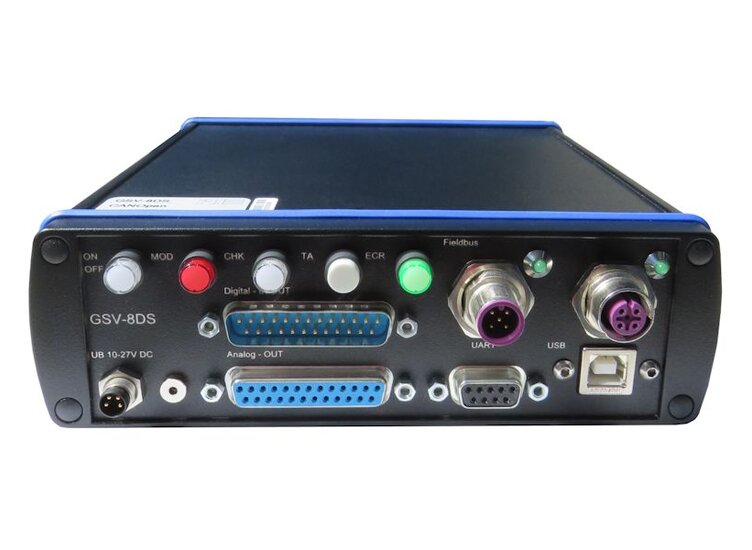

  • 8 - channel straingauge amplifier in aluminum housing;

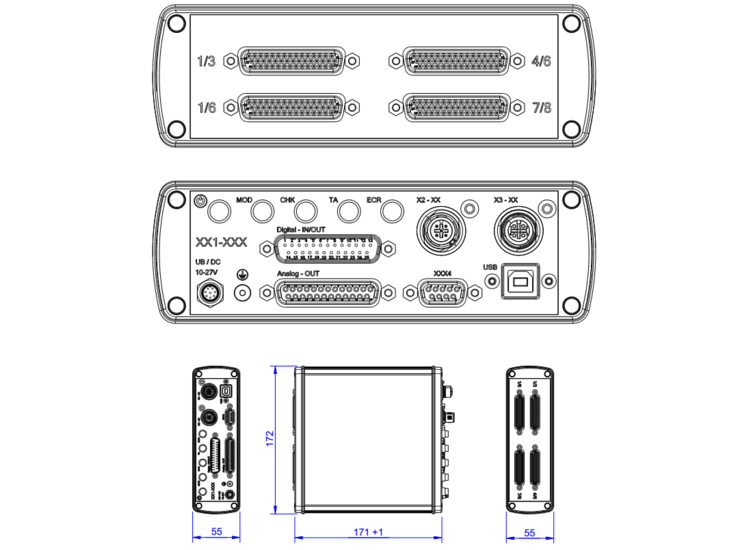

  • dimensions: 176 x 221 x 58 mm;
  • interface: 1x USB Port, CANbus / CANopen, UART/RS232/RS422;
  • 4 pieces Sub-D44HD, selection:
  • 1x 6-axis sensor or 1x K3R-sensor (channels 1/6);
  • 2x for strain gages 0-45-90 rosettes or 3-axis sensors (channels 1/3 and 4/6);
  • 1x for 2 strain gage sensors (channels 7/8);
  • analog output: -10V ... + 10V or 4 ... 20mA (scalable);
  • input sensitivity: 2 / 3,5 / 7 mV/V;
  • datafrequency: 48kS/s simultaneous for 8 channels;
  • configurable filter fourth order: lowpass, bandpass, band-stop, highpass;
  • resolution: 24 bit;
  • supply voltage: 12 V ... 28 V DC;
  • weight: 1.25 kg;
  • environmental protection: IP64;
All details
Select variant:
Artikelbeschreibung
  • 8 - channel straingauge amplifier in aluminum housing;
  • dimensions: 176 x 221 x 58 mm;
  • interface: 1x USB Port, CANbus / CANopen, UART/RS232/RS422;
  • 4 pieces Sub-D44HD, selection:
  • 1x 6-axis sensor or 1x K3R-sensor (channels 1/6);
  • 2x for strain gages 0-45-90 rosettes or 3-axis sensors (channels 1/3 and 4/6);
  • 1x for 2 strain gage sensors (channels 7/8);
  • analog output: -10V ... + 10V or 4 ... 20mA (scalable);
  • input sensitivity: 2 / 3,5 / 7 mV/V;
  • datafrequency: 48kS/s simultaneous for 8 channels;
  • configurable filter fourth order: lowpass, bandpass, band-stop, highpass;
  • resolution: 24 bit;
  • supply voltage: 12 V ... 28 V DC;
  • weight: 1.25 kg;
  • environmental protection: IP64;
Highlights
  • 8-channel amplifier
  • 8x input configurable
  • Full, half, quarter bridge, 120- 350- 1000 ohm, PT1000, ± 10V, Thermocouple Type K,
  • optionally IEPE Sensors with Adapter IEPE-BNC
  • Outputs 1x USB port, 8x analog output ± 10V, 4 ... 20mA configurable, 1x UART/RS232/RS422
  • optional EtherCat, CANbus / CANopen
  • optional external extensions Ethernet, Wi-Fi, LTE
  • 16x Digital Input Output
  • 5x galvanic isolation: analog input, analog output, digital IO, UART, USB
  • 8x 48kS / s simultaneous sampling
  • 6-wire technology, bridge supply 2.5V, 5.0V, 8.75V configurable
  • Digital filters IIR and FIR configurable
  • Resolution <20 nV / V
Product description

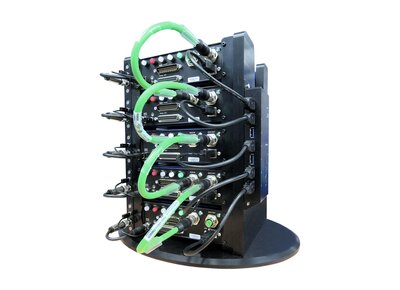

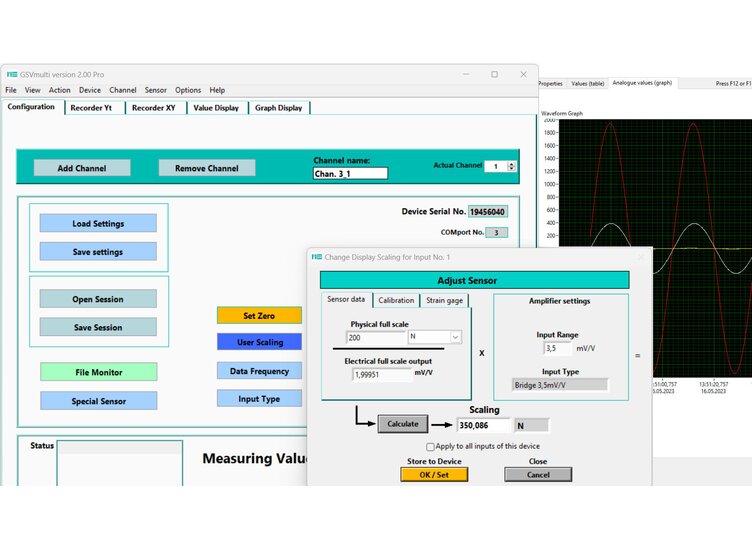

The 8-channel measuring amplifier GSV-8 is characterized by particularly high resolution at data rates from 1 Hz to 48000 Hz.
The 8 channels are recorded simultaneously, without multiplexing.

As communication interfaces USB port, optional EtherCAT or CANbus are available.

The device has 8 configurable analog outputs (± 10V et al and 4 ... 20mA).
An UART interface is used to control the measuring amplifier via a Raspberry PI.

There are 8 analog inputs. They are individually configurable as:

  • DMS input for full bridges in 4- and 6-wire technology
  • DMS input for half-bridges
  • DMS input for quarter-bridge 120 ohms, 350 ohms, 1kOhm
  • Single-ended input ± 10V
  • Input for PT1000 temperature sensor,
  • Input for thermocouple type K  (7x Typ-K, 1x Reference measuring point PT1000)
  • optional IEPE with Adapter Accessory.

Sensors with IEPE (ICP) interface can be connected via an adapter plug with BNC socket, e.g. IEPE acceleration sensors, IEPE force sensors, etc.

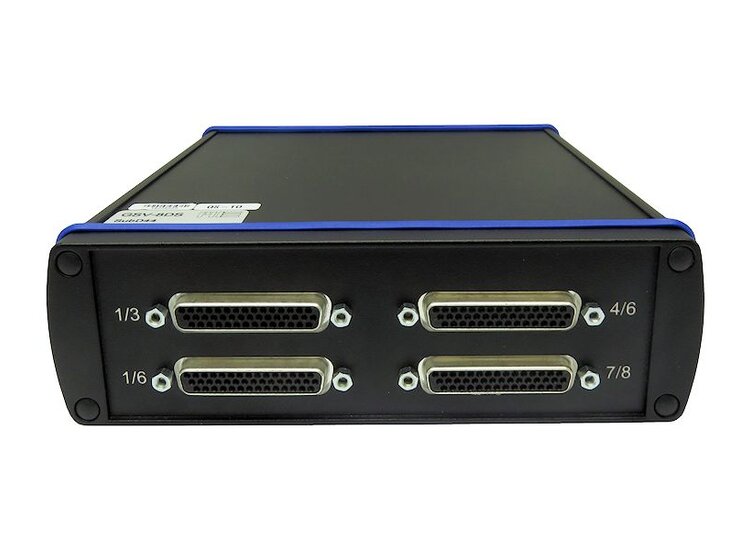

The measuring amplifier GSV-8DS SubD44 is equipped with industrial connectors SubD44HD. This connector is suitable for connection of

  • 1x 6-axis sensor K6D or alternatively with
  • 2x for DMS 0-45-90 rosettes or 2x 3-axis sensors;
  • 1x for 2 DMS T rosette or 1x 2-axis sensors;

The inputs 1 to 6 are connected in parallel on the connectors 1/6 to the inputs on the connectors 1/3 and 4/6.
