        Art.Nr.: 9999

        High Accuracy Calibration/1D

        • Option for calibration of 1-axis sensor;
        • Optimization of sensor accuracy;
        • Increase in the accuracy class:
        • for sensors with accuracy class 1% - to 0.2... 0.5%;
        • for sensors with accuracy class 0.5% - to 0.1... 0.2%;
        • for sensors with accuracy class 0.1% - up to 0.05%;
        • including factory calibration certificate, 5-point, 3 measurement series;
        • Measuring direction: compression and tension;
        • Measurement of span, relative characteristic deviation and relative linearity deviation;
        • Measurement of the insulation resistance, the sensor characteristic value, the zero deviation of the sensor;
        • Measurement of zero-return error;
        • Proof of traceability on DAkkS force standard device;
        • Attaching a calibration mark to the device;
        • Maximum force alternatively 1N to 200kN;
        • Compressive force 0%, 25%, 50%, 75%, 100%, 0%;
        All details
        Select variant:
        Add to Cart
        Product description
        Artikelbeschreibung
        • Option for calibration of 1-axis sensor;
        • Optimization of sensor accuracy;
        • Increase in the accuracy class:
        • for sensors with accuracy class 1% - to 0.2... 0.5%;
        • for sensors with accuracy class 0.5% - to 0.1... 0.2%;
        • for sensors with accuracy class 0.1% - up to 0.05%;
        • including factory calibration certificate, 5-point, 3 measurement series;
        • Measuring direction: compression and tension;
        • Measurement of span, relative characteristic deviation and relative linearity deviation;
        • Measurement of the insulation resistance, the sensor characteristic value, the zero deviation of the sensor;
        • Measurement of zero-return error;
        • Proof of traceability on DAkkS force standard device;
        • Attaching a calibration mark to the device;
        • Maximum force alternatively 1N to 200kN;
        • Compressive force 0%, 25%, 50%, 75%, 100%, 0%;
        Recommended products

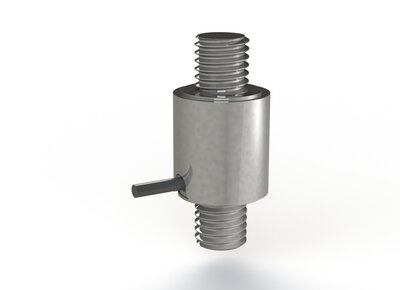

        KM16z Force sensor - ME-Systeme

        KM16z

        type:
        kraftsensor
        Please log in, to view prices.
        PRODUCT DETAILS

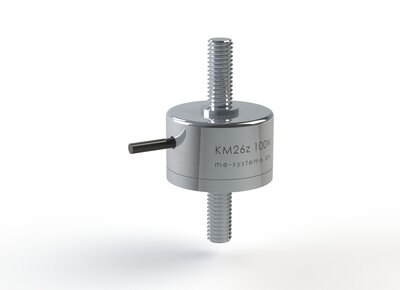

        KM26z Force sensor - ME-Systeme

        KM26z

        type:
        kraftmessdose
        Please log in, to view prices.
        PRODUCT DETAILS

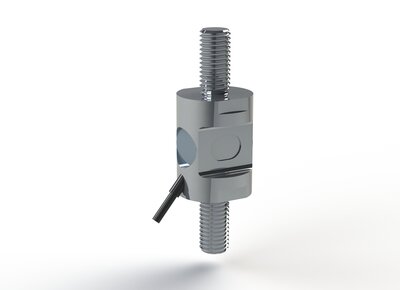

        KM30z Force sensor - ME-Systeme

        KM30z

        type:
        kraftsensor
        Please log in, to view prices.
        PRODUCT DETAILS

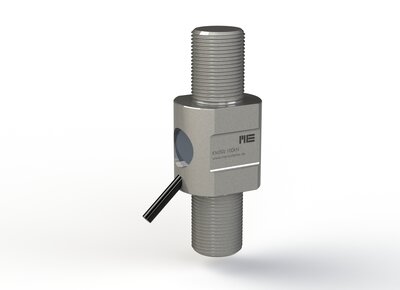

        KM50z Force sensor - ME-Systeme

        KM50z 100kN

        type:
        kraftsensor
        Please log in, to view prices.
        PRODUCT DETAILS

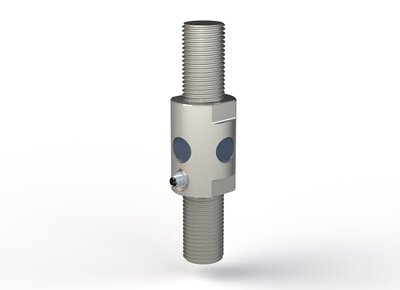

        KM70z Force sensor - ME-Systeme
