        Art.Nr.: 12027

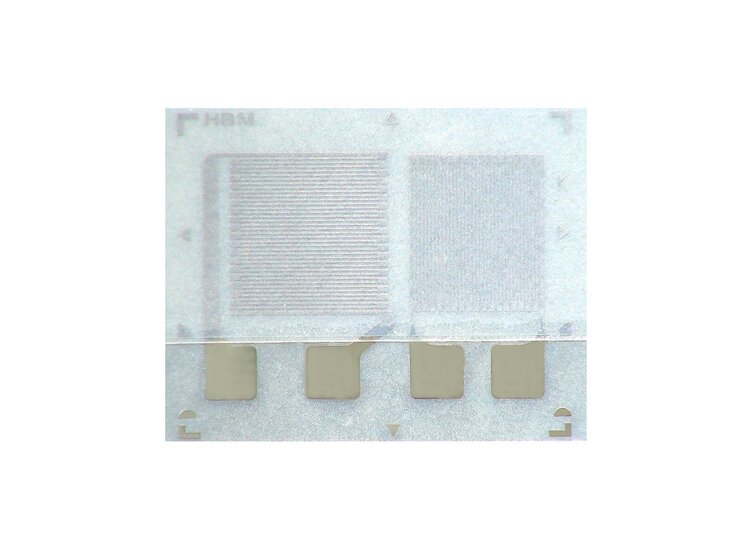

        K-216.68-2206

        • Strain gauge T rosette (0 °, + 90 °), 350 ohms;
        • Connection: soldering pad;
        • Dimensions 7.5mm x 9.1mm;
        • Grid length / width 3 mm;
        • Temperature compensation steel;
        • Measuring grid foil: Konstantan;
        • price per piece

        This strain gauge has thin carrier and is especially suitable for applications on cylindrical components

        All details
        Add to Cart
        Product description
        Datasheet
        Artikelbeschreibung
        • Strain gauge T rosette (0 °, + 90 °), 350 ohms;
        • Connection: soldering pad;
        • Dimensions 7.5mm x 9.1mm;
        • Grid length / width 3 mm;
        • Temperature compensation steel;
        • Measuring grid foil: Konstantan;
        • price per piece

        This strain gauge has thin carrier and is especially suitable for applications on cylindrical components
