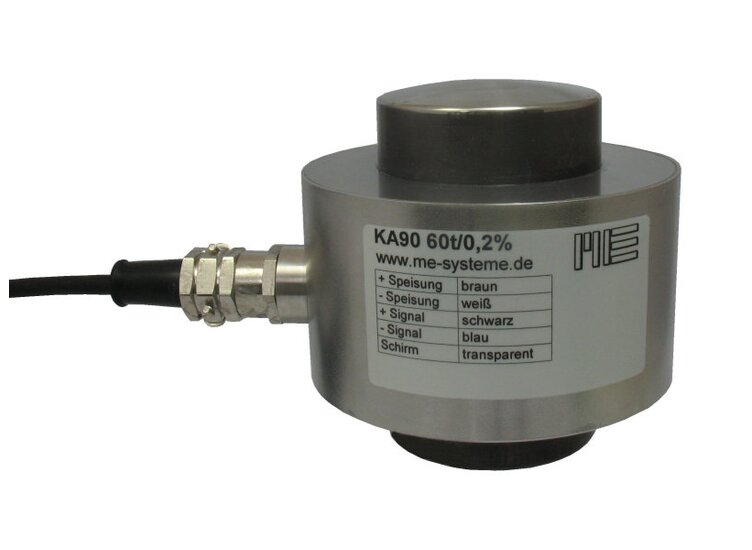

        KA90 Column force sensor - ME-Systeme
        KA90 Column force sensor - ME-Systeme
        Art.Nr.: 3233

        KA90 60t

        • type: column loadcell
        • nominal force: 60 t
        • accuracy class: 0,2

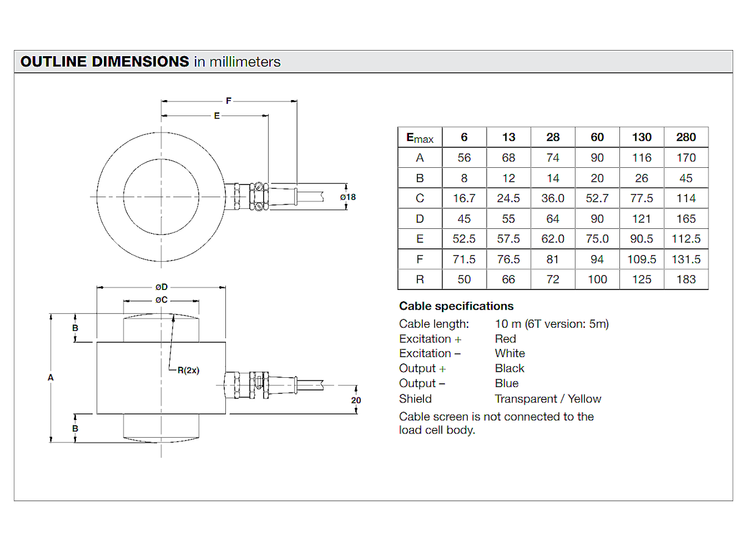

        • dimensions: Ø 90 mm x 90 mm
        • force transmission: 2x load button R100, Ø 52,7 h7 mm x 20 mm
        • connection: 10 m cable
        • material: stainless steel
        • weigh: 1,74 kg
        All details
        Select variant:
        Add to Cart
        Product description
        3D Models
        Artikelbeschreibung
        • type: column loadcell
        • nominal force: 60 t
        • accuracy class: 0,2
        • dimensions: Ø 90 mm x 90 mm
        • force transmission: 2x load button R100, Ø 52,7 h7 mm x 20 mm
        • connection: 10 m cable
        • material: stainless steel
        • weigh: 1,74 kg
        Product description
