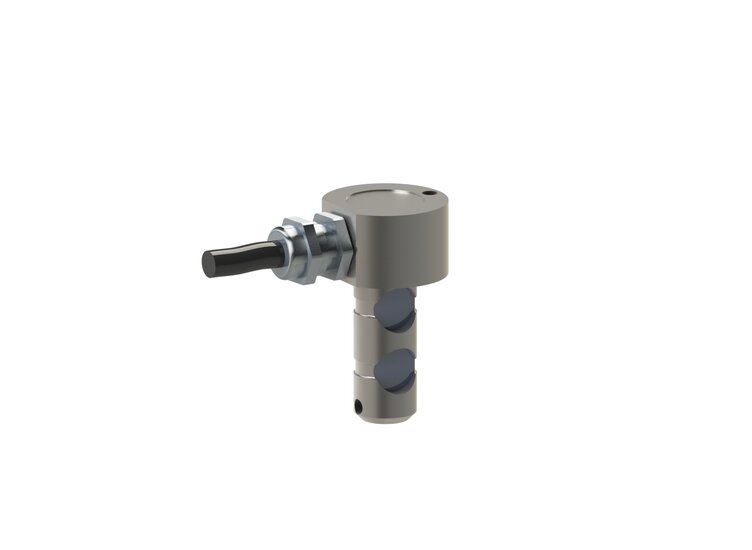

        KB16x32 Measuring pin - ME-Systeme
        KB16x32 Measuring pin - ME-Systeme
        Art.Nr.: 2650

        KB16x32 1kN

        • type: load pin
        • nominal force: 1 kN
        • accuracy class: 1

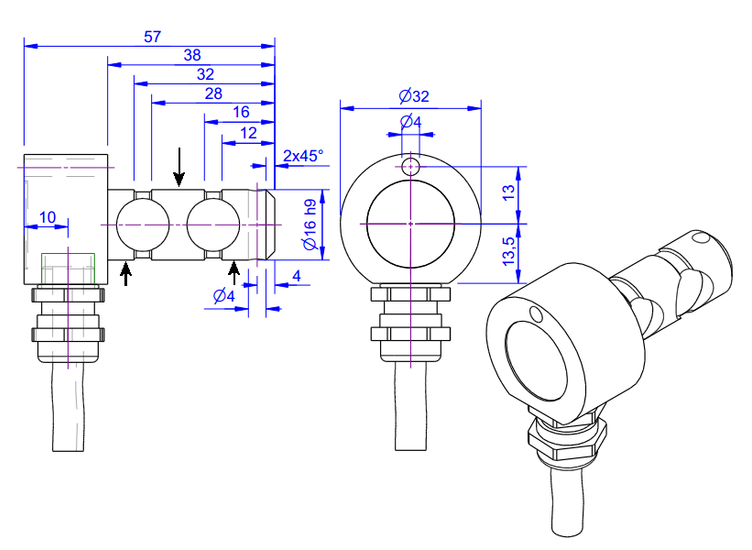

        • dimensions: Ø 16 mm h9 x 38 mm
        • dimensions according to yoke DIN 71152 / DIN ISO 8140
        • connection: 5 m cable FD 4x0,14/PUR
        • material: stainless steel 1.4542
        • weight: 319 g
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models
        Artikelbeschreibung
        • type: load pin
        • nominal force: 1 kN
        • accuracy class: 1
        • dimensions: Ø 16 mm h9 x 38 mm
        • dimensions according to yoke DIN 71152 / DIN ISO 8140
        • connection: 5 m cable FD 4x0,14/PUR
        • material: stainless steel 1.4542
        • weight: 319 g
        Product description

        The plug gauge KB16x32 can be used to measure the force in connection with a fork head of the DIN 71152 / DIN ISO 8140.
