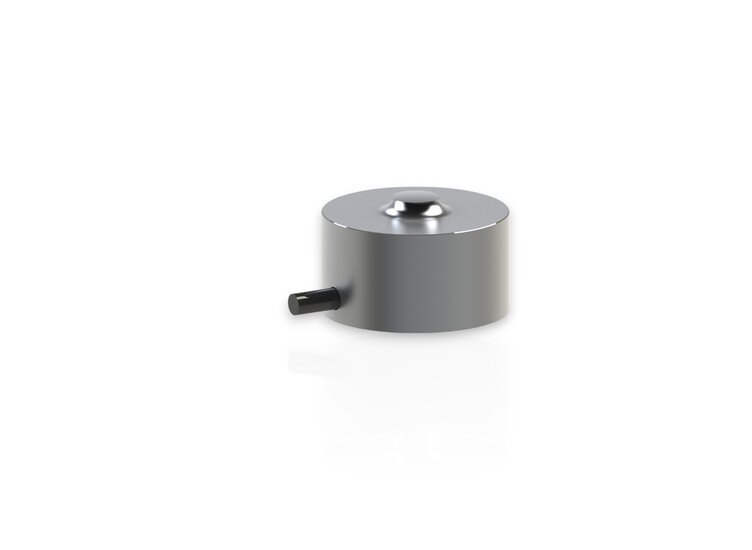

The KM12 is an ultraminiature membrane force sensor.

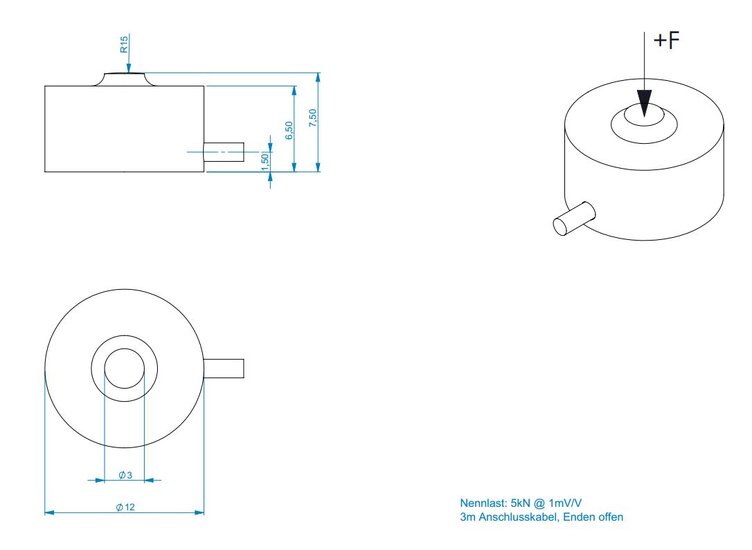

The force is introduced via the calotte (diameter 3mm, R15) in the center of the sensor.
The force sensor is mounted on a flat surface. The centering of the force sensor takes place at the outside range, for example with 3 pens or by a 0.5mm deep flat reduction. The 9.8mm – 7.4mm ring forms the sensor's riot surface. In the center up to diameter 7.4mm, a casting mass is visible. The inner ring is not used for centering.
For heb-securing, the riot surface can be fixed with PUR varnish on a flat surface. Due to the small dimensions, a cable with an external diameter of only 1.4mm is used. The processing of the litts AWG36 requires special tools (scalpel, Hoffmann Abisolierer-AWG36-26). The polyurethane coat is intended exclusively for fixed installation, not for mobile use.
Alternatively, a version with a central cable finish is available (cable type: MESC-4x0014, PUR coat)
Option HA (High Accuracy)
