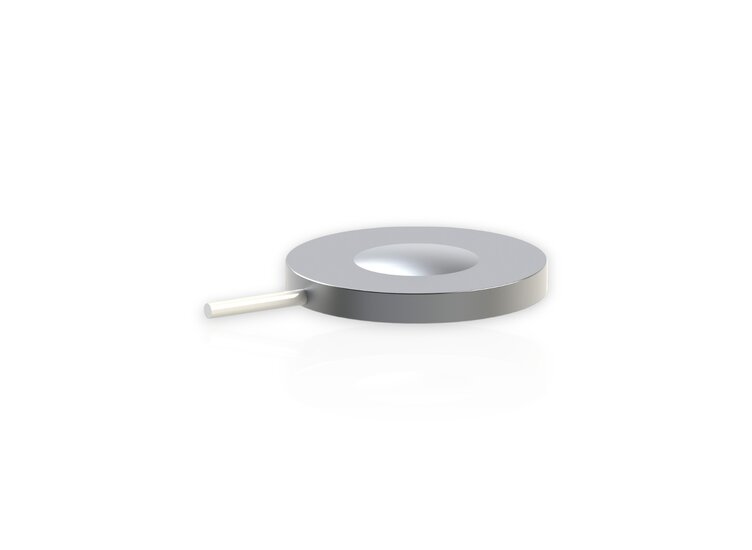

        KM25 load cell - ME-Systems
        KM25 load cell - ME-Systems
        Art.Nr.: 5359

        KM25 100N

        • type: load cell
        • nominal force: 100 N
        • accuracy class: 1
        • dimensions: Ø25 mm x 3 mm
        • force transmission: load button R36.25, Ø12 mm
        • connection: 3 m cable STC-36T-4
        • material: stainless steel
        • weight: 17 g

        Option HA (High Accuracy)

        HA - advantages:

        • high precision, the accuracy class is increased up to approximately 0.2
        • selection of the sensors
        • use of special calibration accessories
        • repeated calibration tests
        • careful configuration and calibration process
        • better adjustment inside the sensor and on the testing machine
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models

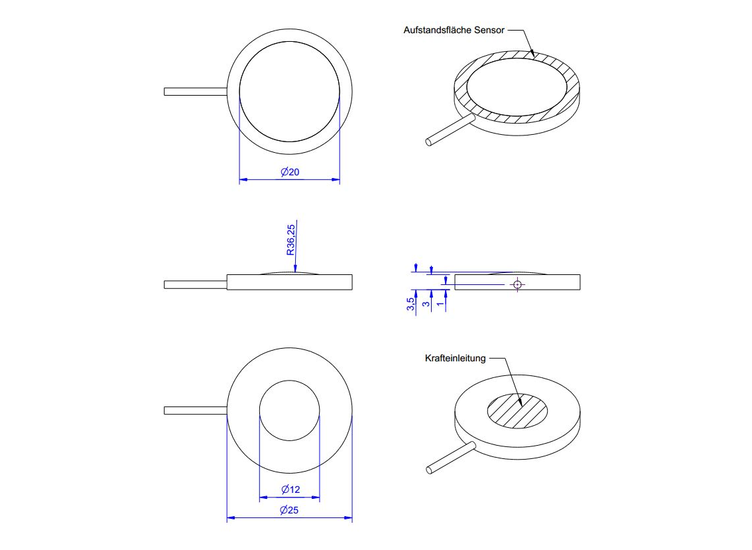

        2d drawing
        Artikelbeschreibung
        • type: load cell
        • nominal force: 100 N
        • accuracy class: 1
        • dimensions: Ø25 mm x 3 mm
        • force transmission: load button R36.25, Ø12 mm
        • connection: 3 m cable STC-36T-4
        • material: stainless steel
        • weight: 17 g

        Option HA (High Accuracy)

        HA - advantages:

        • high precision, the accuracy class is increased up to approximately 0.2
        • selection of the sensors
        • use of special calibration accessories
        • repeated calibration tests
        • careful configuration and calibration process
        • better adjustment inside the sensor and on the testing machine
        Product description

        The force sensor KM25 is a membrane-type force sensor with small dimensions.

        t is suitable for measuring compressive forces. The force sensor is fitted into a flat recess

        and if required, fixed in place with adhesive. There is a spherical cap of radius 20 mm

        provided for the force transmission.

        The method of protection is IP 66
