KM55 load cell - ME-Systems
KM55 load cell - ME-Systems
Art.Nr.: 10428

KM55 10kN

  • type: load cell
  • nominal force: 10 kN
  • accuracy class: 1
  • dimensions: Ø55 mm x 16 mm
  • force transmission: inner bore: Ø12 mm
  • connection: 3 m  ME-SYSTEME.DE / 24-4 PUR
  • material: stainless steel
  • weight: 190 g

Option HA (High Accuracy)

HA - advantages:

  • high precision, the accuracy class is increased up to approximately 0.1
  • selection of the sensors
  • use of special calibration accessories
  • repeated calibration tests
  • careful configuration and calibration process
  • better adjustment inside the sensor and on the testing machine
All details
Select variant:
Artikelbeschreibung
  • type: load cell
  • nominal force: 10 kN
  • accuracy class: 1
  • dimensions: Ø55 mm x 16 mm
  • force transmission: inner bore: Ø12 mm
  • connection: 3 m  ME-SYSTEME.DE / 24-4 PUR
  • material: stainless steel
  • weight: 190 g

Option HA (High Accuracy)

HA - advantages:

  • high precision, the accuracy class is increased up to approximately 0.1
  • selection of the sensors
  • use of special calibration accessories
  • repeated calibration tests
  • careful configuration and calibration process
  • better adjustment inside the sensor and on the testing machine
Product description

The force sensor KM55 is exceptionally suitable for measuring preload of bolts on account of its flat construction and its through hole.

But the internal bore 12 mm is also suitable for introduction of a force transmission. With a spherical cap the force transmission can be centered and made free of lateral force .

Through the introduction of half liners or prisms these force sensors can be adapted to the measurement of rolling forces.

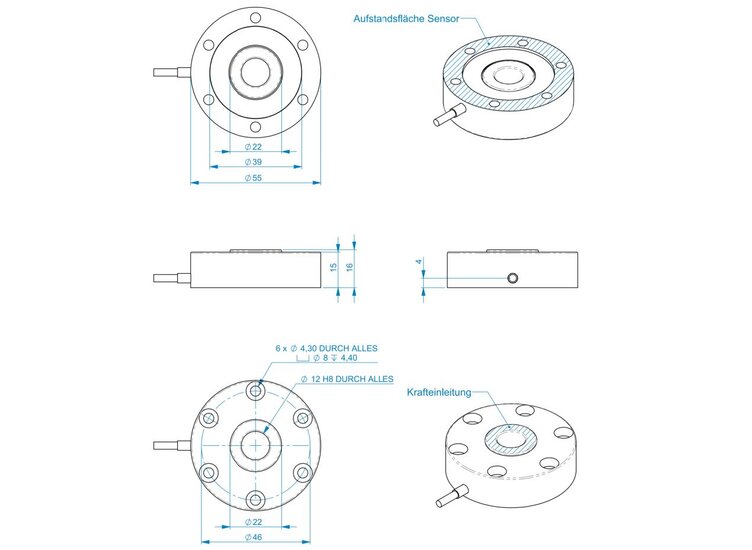

The six Ø4,3mm thread holes on the bottom side permit the attachment of the sensor or the fitting of a prism.
