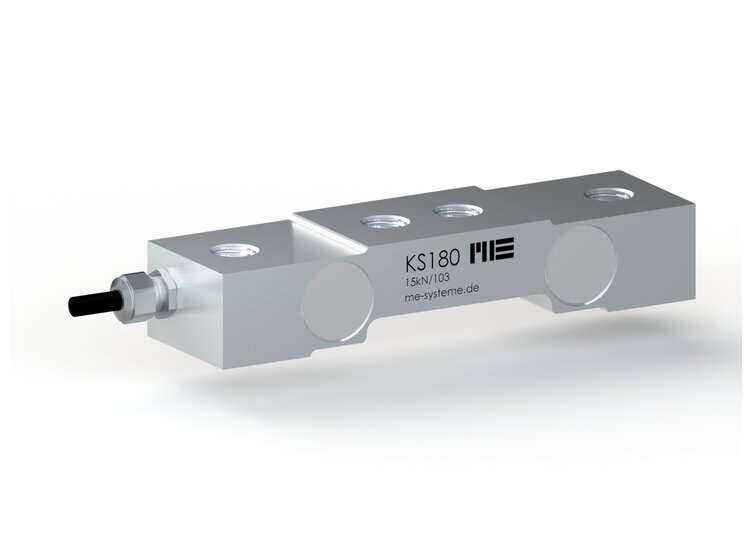

        KS180 Bearing force sensor - ME-Systeme
        KS180 Bearing force sensor - ME-Systeme
        Art.Nr.: 9259

        KS180 5kN/97

        • type: double shear beam force sensor
        • nominal force: 5 kN
        • accuracy class: 0,5
        • dimensions: 130 mm x 32 mm x 25 mm
        • force transmission: 2x female thread M12x1,75
        • mounting: 2x female thread M12x1,75
        • connection: 5 m cable 2x2x0,25/PUR
        • material: tool steel, zinc-plated
        • weight: 567,25 g

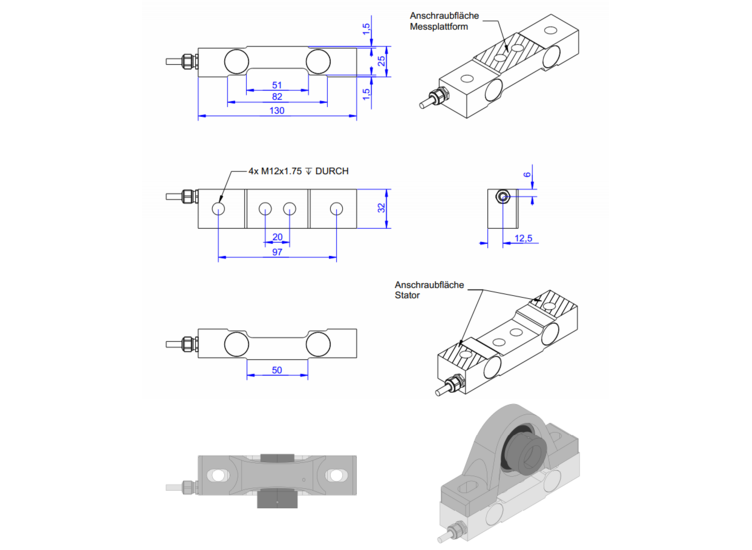

        * Drawing according to KS180 15kN/97

        The force sensor KS180 is suitable for the measurment of forces under pillow block bearings for diameter 20 mm


        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models
        2d drawing
        Artikelbeschreibung
        • type: double shear beam force sensor
        • nominal force: 5 kN
        • accuracy class: 0,5
        • dimensions: 130 mm x 32 mm x 25 mm
        • force transmission: 2x female thread M12x1,75
        • mounting: 2x female thread M12x1,75
        • connection: 5 m cable 2x2x0,25/PUR
        • material: tool steel, zinc-plated
        • weight: 567,25 g

        * Drawing according to KS180 15kN/97

        The force sensor KS180 is suitable for the measurment of forces under pillow block bearings for diameter 20 mm


        Product description

        The KS180 force sensor is suitable for measuring forces between two bearing surfaces.

        For example, this force sensor is used to measure the bearing force of pedestal bearings. The dimensions of the force sensor match the standard “LASE” pedestal bearing housing units by INA.

        Other dimensions can be produced on request according to designs.
