        Art.Nr.: 6329

        Li-Ion 1S/4P/10400mAh/4BT

        • Rated capacity: 10,4 Ah;
        • rated voltage: 3,7 V;
        • cut-off voltage (minimal): 3V;
        • discharge current (max.): 6A (1C);
        • charge voltage (max.): 4,2V (4,2V +- 0,03V);

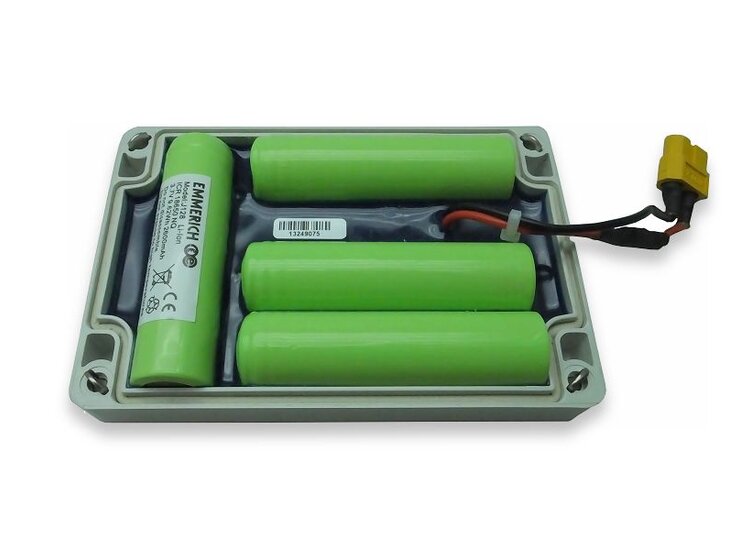

        • 4 cells with 2600 mAh integrated in alumium cover;
        • weigth: 297 g;
        • dimensions 120 mm x 80 mm x 20 mm;
        • for GSV-3BT M12 and GSV-4BT M12;



        All details
        Add to Cart
        Product description
        Instructions
        Artikelbeschreibung
        • Rated capacity: 10,4 Ah;
        • rated voltage: 3,7 V;
        • cut-off voltage (minimal): 3V;
        • discharge current (max.): 6A (1C);
        • charge voltage (max.): 4,2V (4,2V +- 0,03V);
        • 4 cells with 2600 mAh integrated in alumium cover;
        • weigth: 297 g;
        • dimensions 120 mm x 80 mm x 20 mm;
        • for GSV-3BT M12 and GSV-4BT M12;
