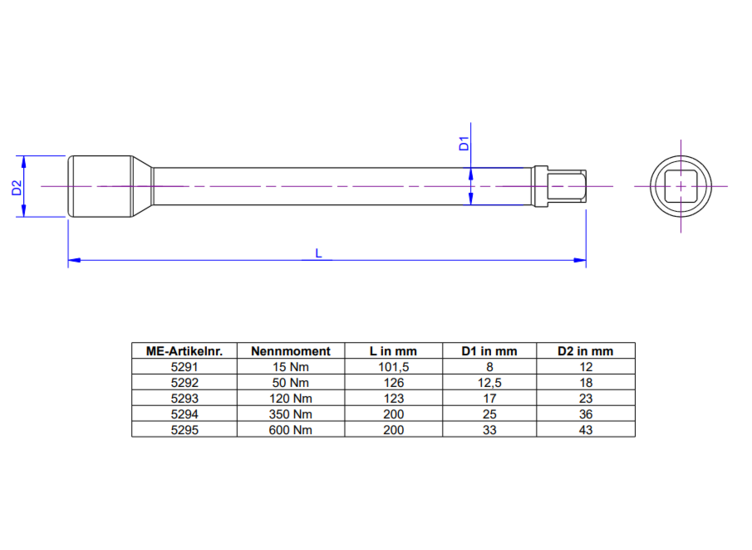

        Torque sensor, 15Nm ... 600Nm, accuracy class 1%, 101,5mm x Ø 20mm ...200 mm x Ø43 mm, outer and inner square 1/4
        Torque sensor, 15Nm ... 600Nm, accuracy class 1%, 101,5mm x Ø 20mm ...200 mm x Ø43 mm, outer and inner square 1/4
        Art.Nr.: 4781

        TA125 120Nm

        • type: torque sensor
        • nominal force: 120 Nm
        • accuracy class: 1
        • dimensions: 123 mm x Ø23 mm
        • extension 123 mm, outer and inner square 1/2''
        • connection: 3 m LAPP FD CP Plus 4x0,14
        • material: tool steel
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models
        2d drawing
        Artikelbeschreibung
        • type: torque sensor
        • nominal force: 120 Nm
        • accuracy class: 1
        • dimensions: 123 mm x Ø23 mm
        • extension 123 mm, outer and inner square 1/2''
        • connection: 3 m LAPP FD CP Plus 4x0,14
        • material: tool steel
        Product description

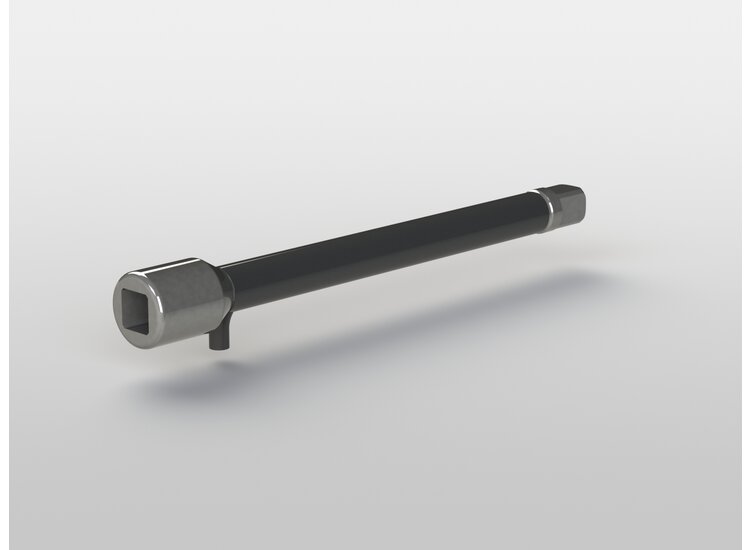

        The torque sensor TA125 is suitable for measuring the reaction torque up to a nominal torque of 600 Nm (corded, non-rotating).

        The torque sensor TA125 is used to monitor torques in quality assurance.
