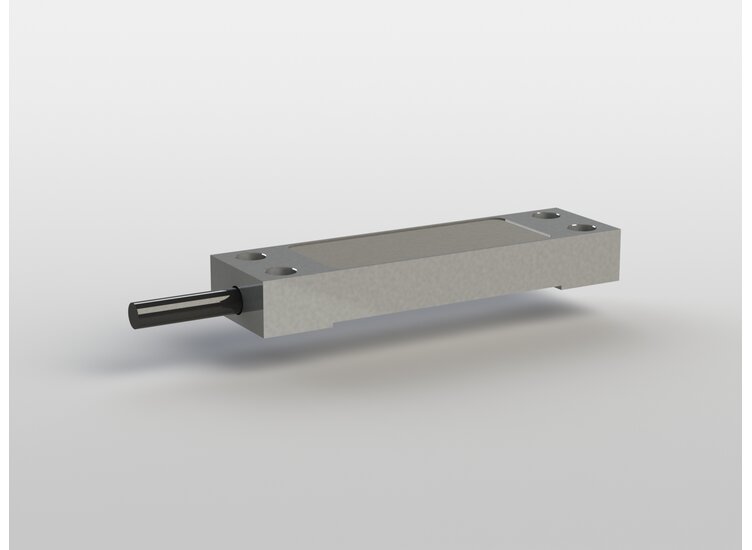

Thanks to its closed design and stainless steel construction, the DA90 strain transducer is suitable for measuring strain and force on machine elements and components in harsh environments.

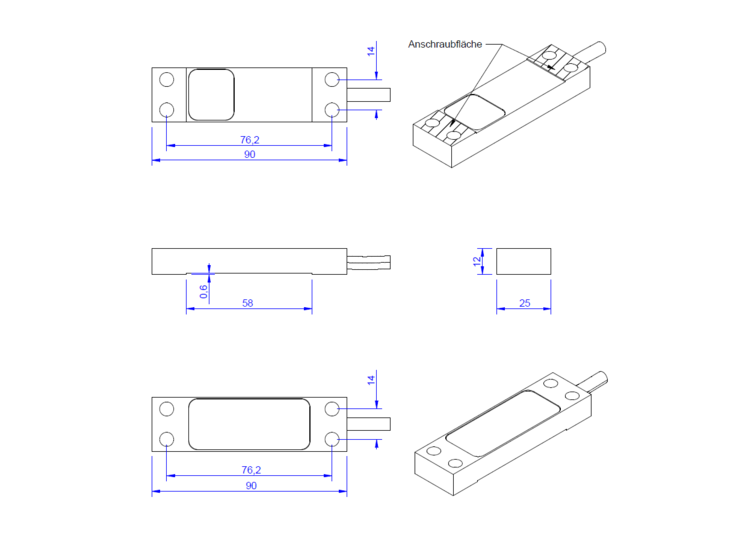

The transducer is installed by screwing it on with 4 M6 screws. Areas of application include force monitoring, level measurement and strain measurement on steel components. Mechanical loads on the component are transferred to the strain transducer by means of frictional connection via the 4 fastening screws and converted into an electrical output signal.
The output signal, temperature behavior and transmission factor depend on the geometry and material pairing of the strain transducer and component. The transducer is therefore calibrated by applying a known force to the component.
The DA90i strain transducer contains GSV-6L 0...10 V or 4...20 mA evaluation electronics with zero setting and scaling function as well as threshold value output.
