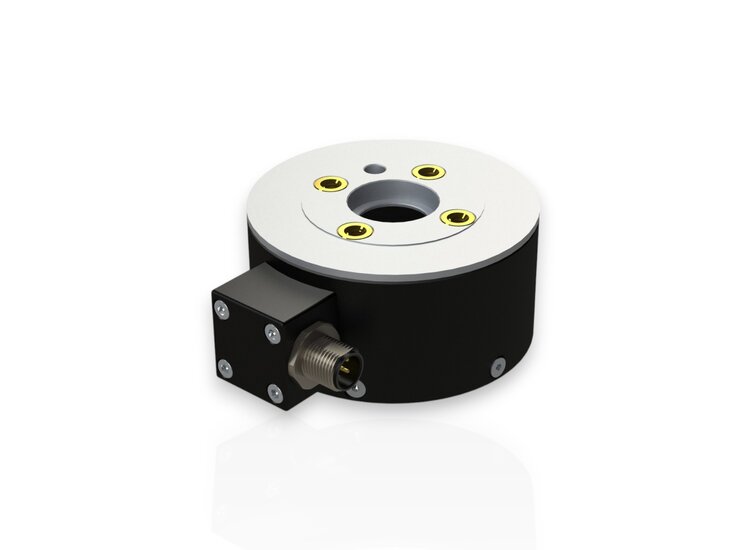

The multi-component sensor F6D80 is used for force and torque measurement in three mutually perpendicular axes.

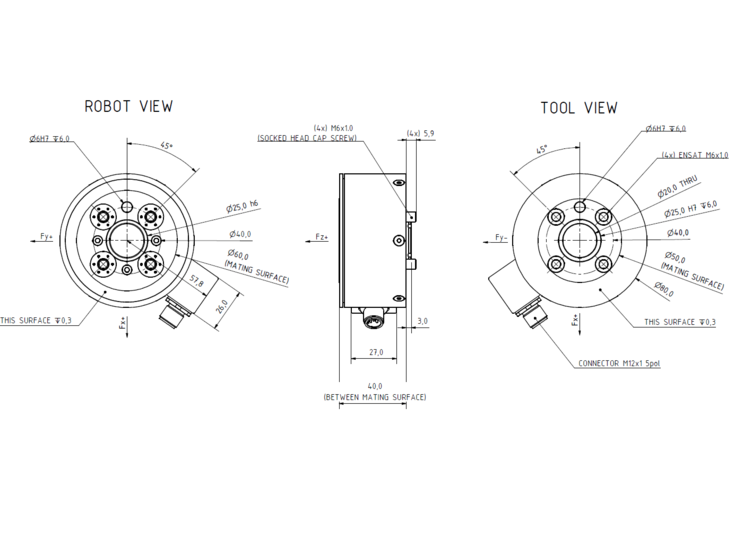

The multi-component sensor F6D80 is equipped with fastening flanges according to DIN EN ISO 9409-1 for industrial robots. The measuring flange of the sensor contains tapped holes M6 on the same pitch circle. The F6D force / torque sensor can be mounted to the robot flange without additional adapters, making it particularly flat and light compared to the K6D series sensors.

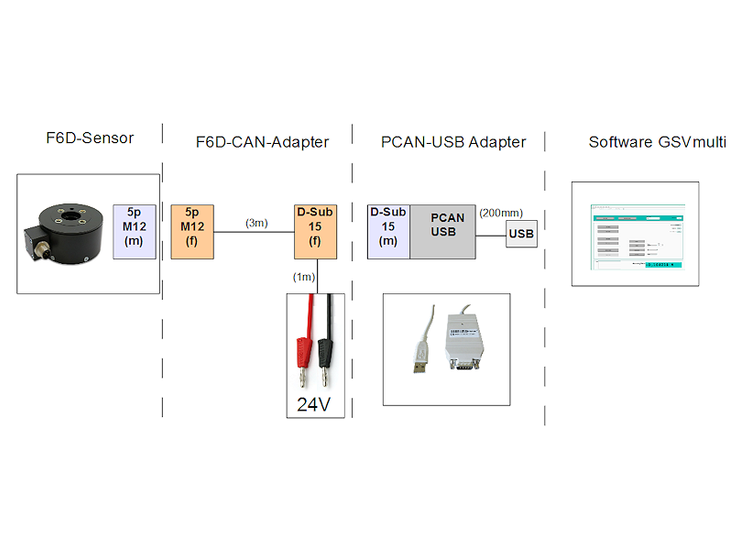

The evaluation of the force and moment load is carried out, e.g. with an external measuring amplifier GSV-8DS SubD44HD or GSV-8AS or with an integrated electronics type GSV-6.
The sensors are made of an aluminum alloy.
Our partner IPR – Intelligente Peripherien für Roboter GmbH offers solutions for applications of force / torque sensors.
