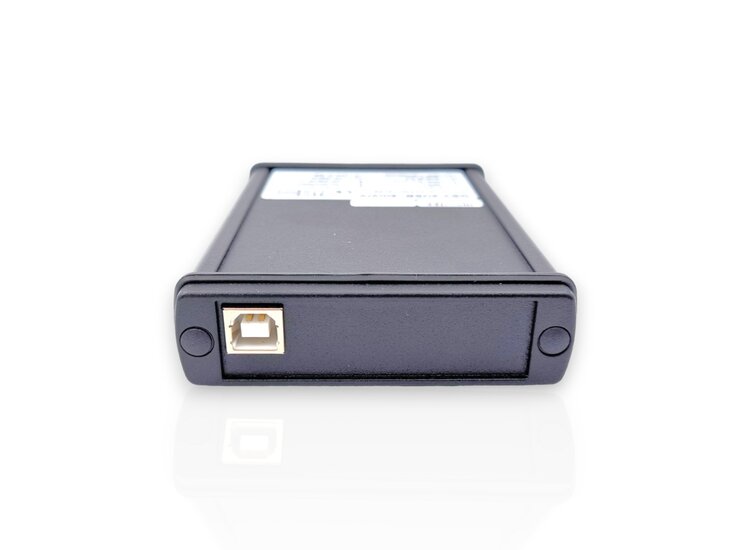

This measuring amplifier for sensors with wire strain gauges is equipped with a USB interface, while power is supplied via the USB port on the rear of the measuring amplifier.
The measuring amplifier is also available in a 2-channel version (GSV-3USBx2).
A 15-pole Sub-D socket is included for connecting sensors.

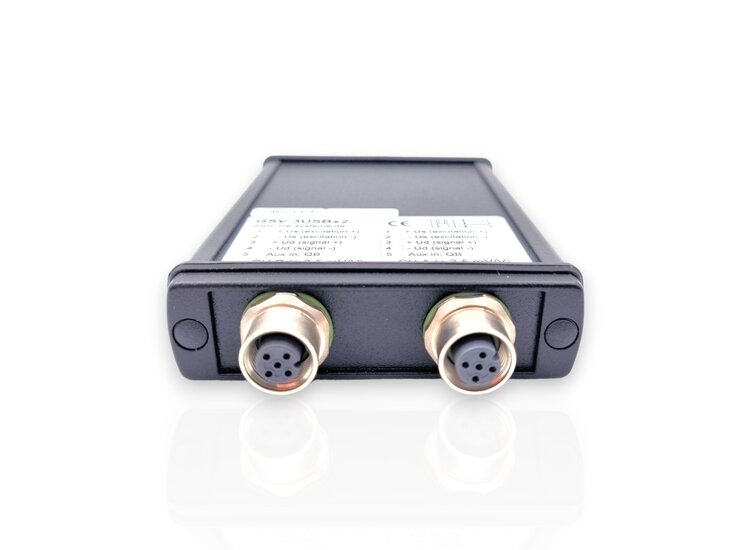

The dual-channel measuring amplifier features sensor connections via two round plug connectors.
Ideal for usage with acceleration sensors AS28 or sensors with semiconductor strain gages.
The high limiting frequency of 1250 Hz is suitable for the detection of static and dynamic signals from sensors with straingages.
The stand-out features include its high sampling rate of 10kHz and the high 16 bit resolution, as well as the exceptional command set provided to configure the measuring amplifier via ASCII control codes or a Windows DLL.
This measuring amplifier can also be configured via solder bridges when analysing straingage quarter bridges (e.g. 350 ohm) or for a power supply of ±10 V .
It can also be optionally supplied for connecting potentiometric displacement transducers or for power input of 4...20mA , as well as for incremental encoders.
