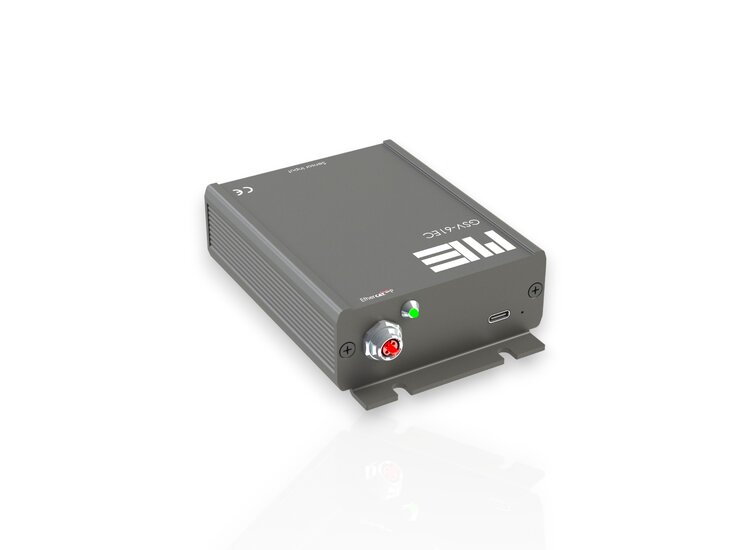

        Art.Nr.: 14900

        GSV-61T6 EC/SubD44HD

        • 6-channel strain gauge measuring amplifier with EtherCAT P interface;
        • in aluminum profile housing TUF843250SA
        • Dimensions: 84.3mm x 50mm x 32mm
        • Measuring range +- 2 mV/V
        • 16Bit ADC;
        • Measuring frequency 0Hz ... 1000Hz;
        • Connection 1 x Sub-D44 HD socket for sensor K6D;
        • 1x screw terminal round connector M8 for EtherCAT P
        All details
        Add to Cart
        Product description
        Datasheet
        3D Models

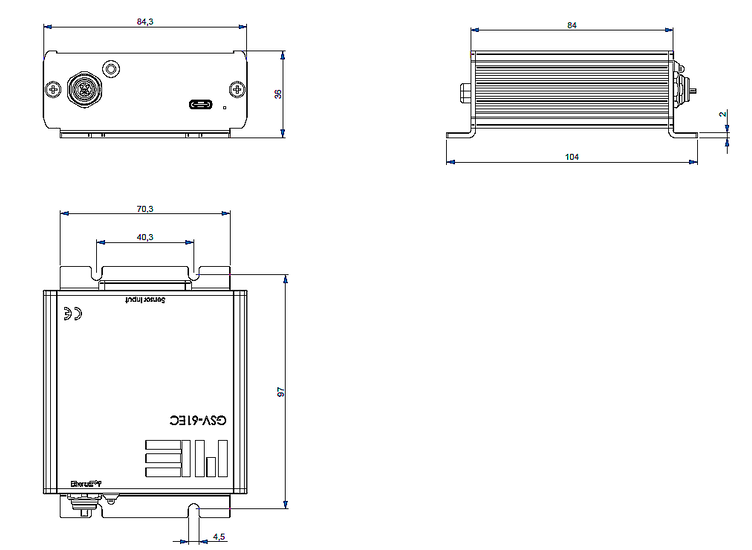

        2d drawing
        Instructions
        Artikelbeschreibung
        • 6-channel strain gauge measuring amplifier with EtherCAT P interface;
        • in aluminum profile housing TUF843250SA
        • Dimensions: 84.3mm x 50mm x 32mm
        • Measuring range +- 2 mV/V
        • 16Bit ADC;
        • Measuring frequency 0Hz ... 1000Hz;
        • Connection 1 x Sub-D44 HD socket for sensor K6D;
        • 1x screw terminal round connector M8 for EtherCAT P
        Highlights
        • 6 channels for connecting force-torque sensors
        • Supply and data transmission with EtherCAT P
        • USB interface for configuration and commissioning with GSVmulti
        • 1kHz data frequency
        • Ultra-miniature flange housing  84.3mm x 32mm x 50mm
