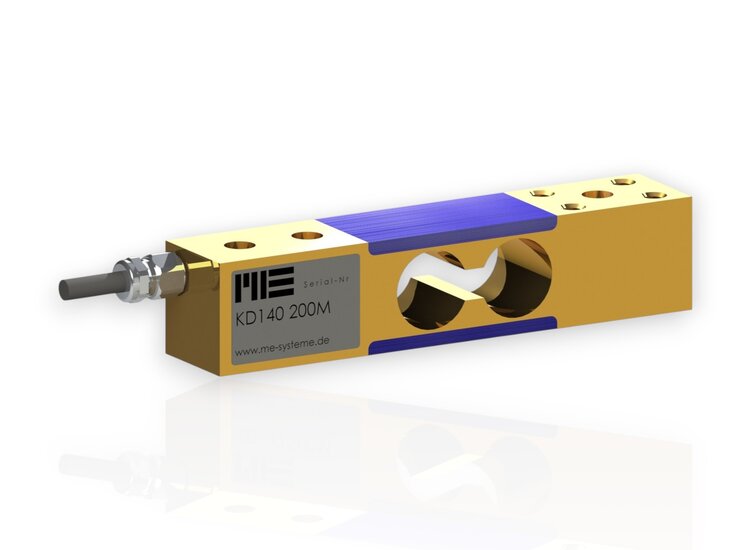

        KD140 Bending beam force sensor - ME-Systems
        KD140 Bending beam force sensor - ME-Systems
        Art.Nr.: 837

        KD140 50N

        • type: double bending beam force sensor
        • nominal force: 50 N
        • accuracy class: 0,1
        • dimensions: 140 mm x 28 mm x 30 mm
        • force transmission: 4 x female thread M6x1 riveted on both sides; 3 x feedtrough diameter 8,2 mm
        • connection: 3 m Unitronic FD CP Plus / 4x0,14
        • material: aluminium alloy, gold anodized
        • weight: 240 g
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models
        2d drawing
        Artikelbeschreibung
        • type: double bending beam force sensor
        • nominal force: 50 N
        • accuracy class: 0,1
        • dimensions: 140 mm x 28 mm x 30 mm
        • force transmission: 4 x female thread M6x1 riveted on both sides; 3 x feedtrough diameter 8,2 mm
        • connection: 3 m Unitronic FD CP Plus / 4x0,14
        • material: aluminium alloy, gold anodized
        • weight: 240 g
        Product description

        The KD140 force sensor is particularly suitable for integration in assembly and testing devices due to the low installation height and the tolerance against displacements of the force introduction and against transverse forces. The mounting can be made either via through-holes Ø8,2mm, or through 4 threaded holes M6. Due to the design of the sensor as a double beam (parallelogram guide), the force introduction point shifts parallel by approx. 0.2 mm at 100% of the nominal force.
