        KD78 Bending beam force sensor - ME-Systems
        KD78 Bending beam force sensor - ME-Systems
        Art.Nr.: 22

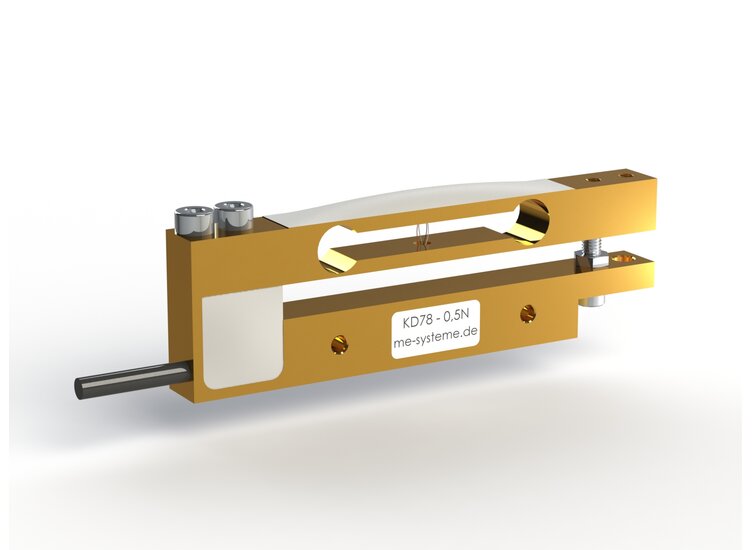

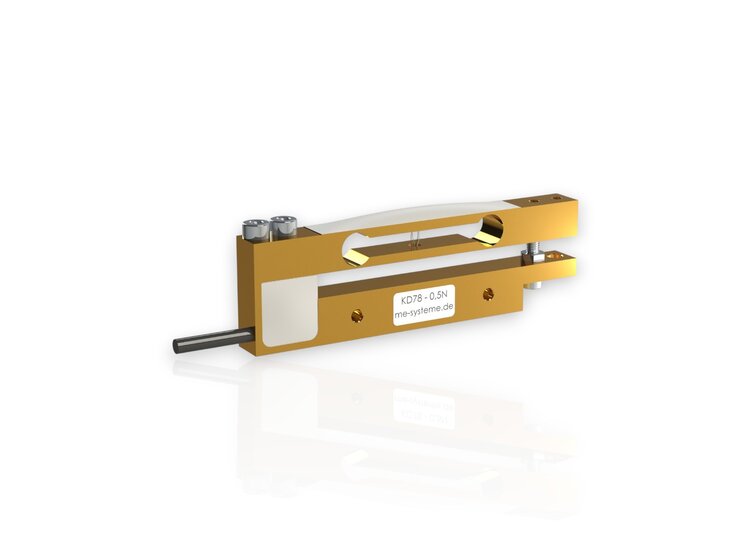

        KD78 500mN

        • type: double bending beam force sensor
        • nominal force: 500 mN
        • accuracy class: 0,1
        • dimensions: 78 mm x 8 mm x 23 mm
        • force transmission: 2 x female thread M3x0,5
        • connection: 2 m STC-31V-4
        • material: Aluminium alloy, gold anodized
        • weigh: 30 g

        The Force sensor KD78 0.5N incorporates an overload protection, which allows a maximum load of about ±1N.
        The force sensor KD78 0.5N is especially well-suited for the measurements of low forces in the range of millinewtons.
        The natural frequency of this sensor ranges between 300Hz and 400Hz.

        Recommended Amplifier Series for the measurements of low forces: GSV-2

        All details
        Add to Cart
        Product description
        Datasheet
        3D Models

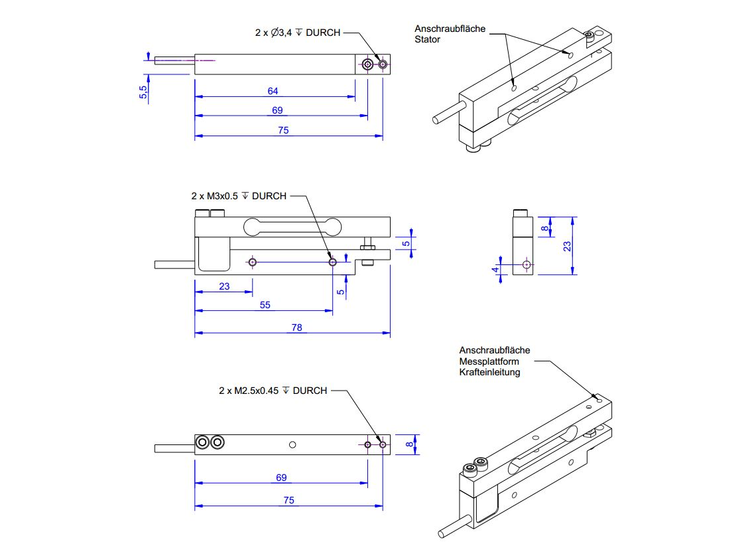

        2d drawing
        Artikelbeschreibung
        • type: double bending beam force sensor
        • nominal force: 500 mN
        • accuracy class: 0,1
        • dimensions: 78 mm x 8 mm x 23 mm
        • force transmission: 2 x female thread M3x0,5
        • connection: 2 m STC-31V-4
        • material: Aluminium alloy, gold anodized
        • weigh: 30 g

        The Force sensor KD78 0.5N incorporates an overload protection, which allows a maximum load of about ±1N.
        The force sensor KD78 0.5N is especially well-suited for the measurements of low forces in the range of millinewtons.
        The natural frequency of this sensor ranges between 300Hz and 400Hz.

        Recommended Amplifier Series for the measurements of low forces: GSV-2

        Product description

        The force sensor KD78 is used for force measurement in the millinewton range or for weighing purposes with a resolution of approx. 10 mg.

        Due to the sensor's low weight and its high natural frequency of approx. 400Hz, high measurement rates of up to 50Hz can be realized despite the low measurement range of 0.5 newton. Also filtering in order to refine resolution can be conducted.

        The best possible resolution is achieved with the 24bit measuring amplifier GSV-2.
