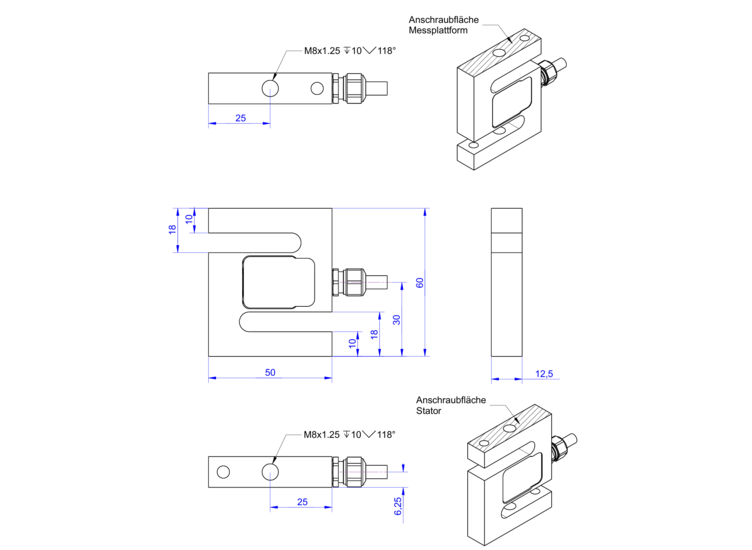

The force sensor KD80se is used for tensile and compressive force measurements and for weighing.
Fields of application are e.g. Rope force measurements, test benches, overload protection for lifting equipment, process controls and scales.
The KD80se sensors have an integrated GSV-13q measuring amplifier with analogue output. The supply voltage is 14 ...28V DC Unlike the GSV-6L integratable measuring amplifier, the GSV-13i is not configurable via the ClickRClackR menu. The integrated measuring amplifier GSV-13i focuses on smallest dimensions, zero setting and scaling function. In contrast, filter functions and resolution with 600 nV/V ... 20 µV/V noise amplitude PkPk not suitable for high resolution applications. For high resolutions the use of an external measuring amplifier is recommended.
The KD80se sensors correspond to accuracy class 0.5. The protection class is IP65.
