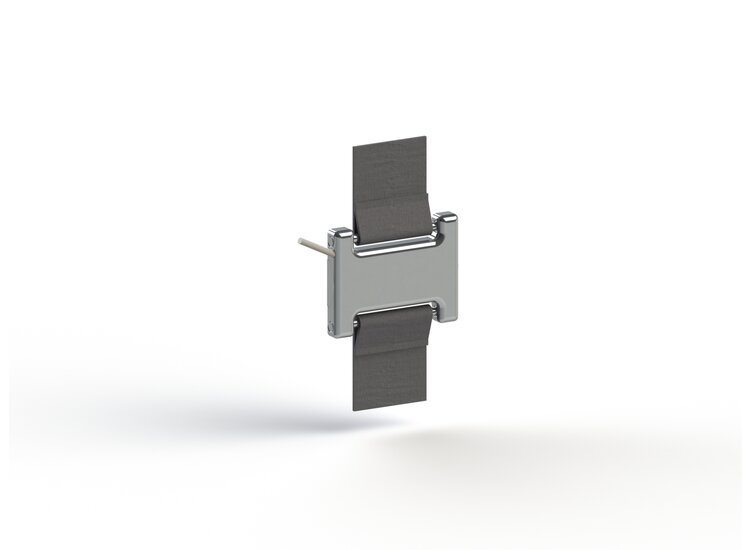

        KL20 Tension load cell - ME-Systeme
        KL20 Tension load cell - ME-Systeme
        Art.Nr.: 8665

        KL20 100N

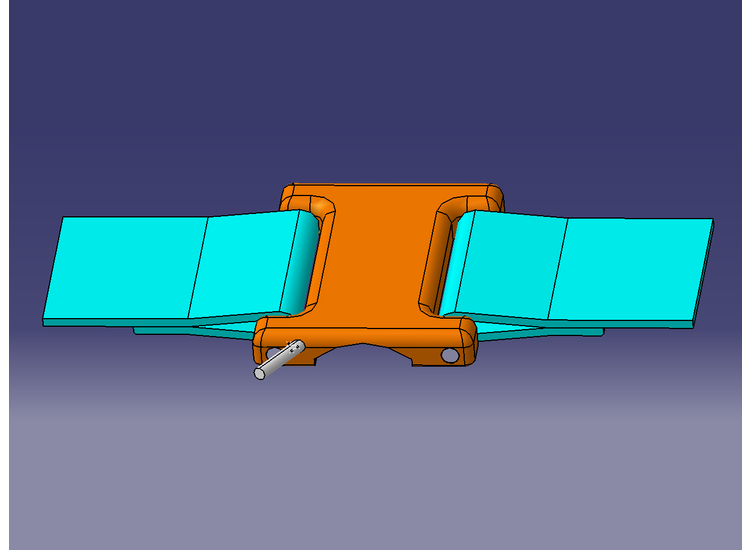

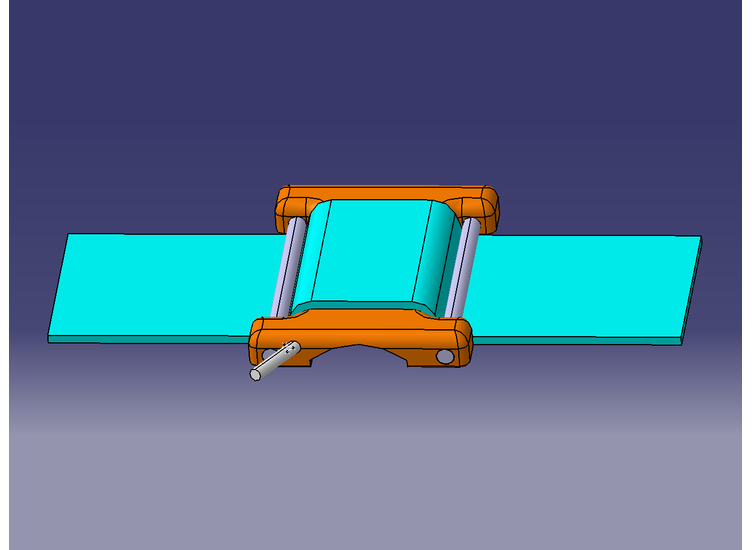

        • Type: belt sensor
        • Nominal force: 100 N
        • Accuracy class: 1
        • Dimensions: 31 mm x 24 mm x 4 mm
        • For belt width 5 mm ... 20 mm
        • For belt thickness 0.4 mm ...1.5 mm
        • Connection: 1m STC-36T-4
        • Material: aluminum alloy
        • Weight: 7 g
        All details
        Add to Cart
        Product description
        Datasheet

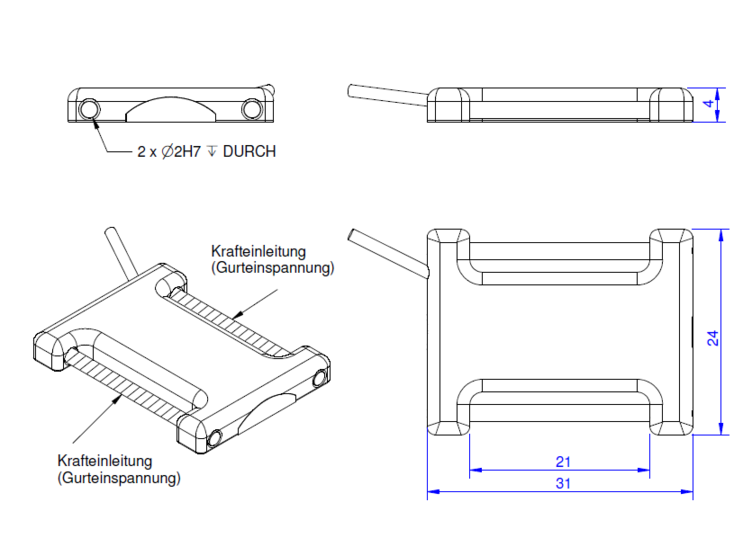

        2d drawing
        KL20 100N
        KL20 100N.pdf
        KL20 100N
        kl20-zeichnung.pdf
        Artikelbeschreibung
        • Type: belt sensor
        • Nominal force: 100 N
        • Accuracy class: 1
        • Dimensions: 31 mm x 24 mm x 4 mm
        • For belt width 5 mm ... 20 mm
        • For belt thickness 0.4 mm ...1.5 mm
        • Connection: 1m STC-36T-4
        • Material: aluminum alloy
        • Weight: 7 g
        Product description

        Recommended products

        Calibration Certificate kn/20/5

        Please log in, to view prices.
        PRODUCT DETAILS
        Measuring amplifier in aluminum housing (IP54) for sensors with straingages. Limiting frequency 1250Hz, input sensitivity 2.0 mV/V.

        GSV-3USB 2mV/V

        Please log in, to view prices.
        PRODUCT DETAILS

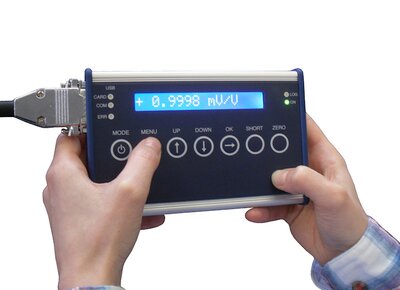

        Mobile datalogger with display; aluminium housing with keypad, SD-card slot, USB-Port, 0 Hz ...3750 Hz measurements
