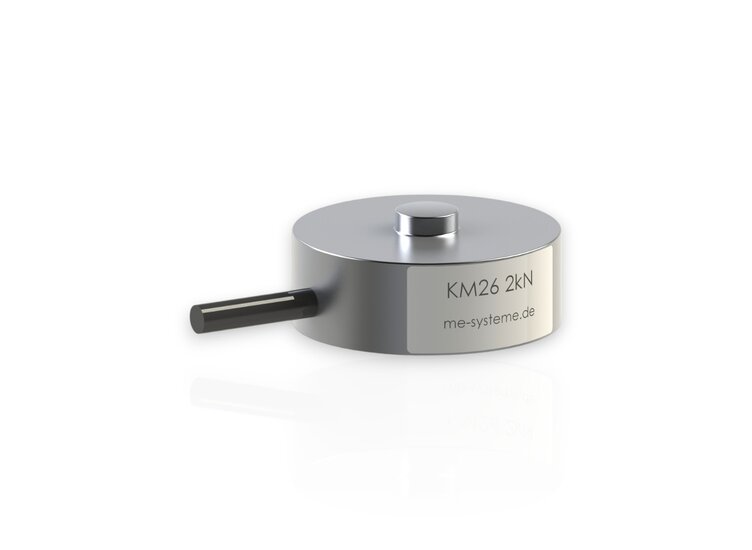

The force sensor KM 26 is a membrane-type force sensor with small dimensions.

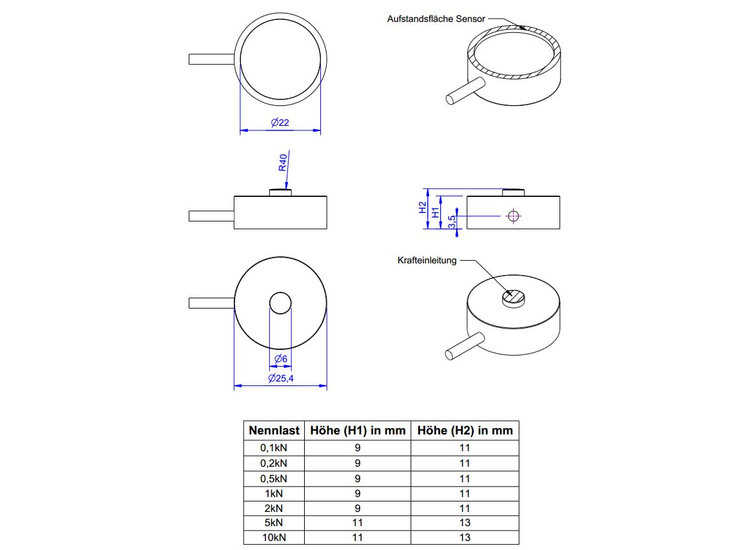

It is suitable for measuring compressive forces. The force sensor is fitted into a flat recess and if required, fixed in place with adhesive. There is a spherical cap of radius 40 mm provided for the force transmission.
The method of protection is IP 67.
As against force sensors of the KD (double-beam) series, lateral forces result in a measurement error.
Therefore, the force transmission must be centric and free of lateral forces.
Option HA (High Accuracy)
