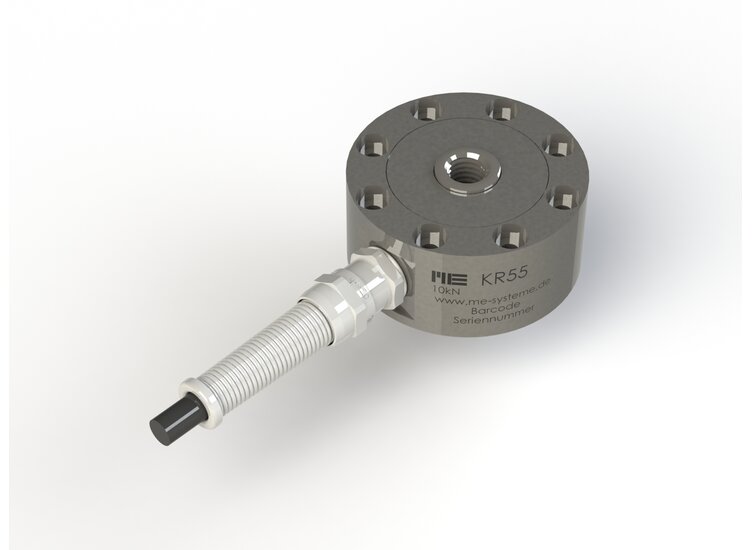

        KR55 ring torsion force sensor - ME-Systems
        KR55 ring torsion force sensor - ME-Systems
        Art.Nr.: 11168

        KR55 1kN

        • type: ring torsion force sensor
        • nominal force: 1 kN
        • accuracy class: 0,05
        • dimensions: Ø55 mm x 27 mm
        • force introduction: internal thread M10
        • connection: 2,1 m Unitronic FD CP TP Plus / 2x2x0,25
        • material: stainless steel
        • weight: 300 g
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        3D Models

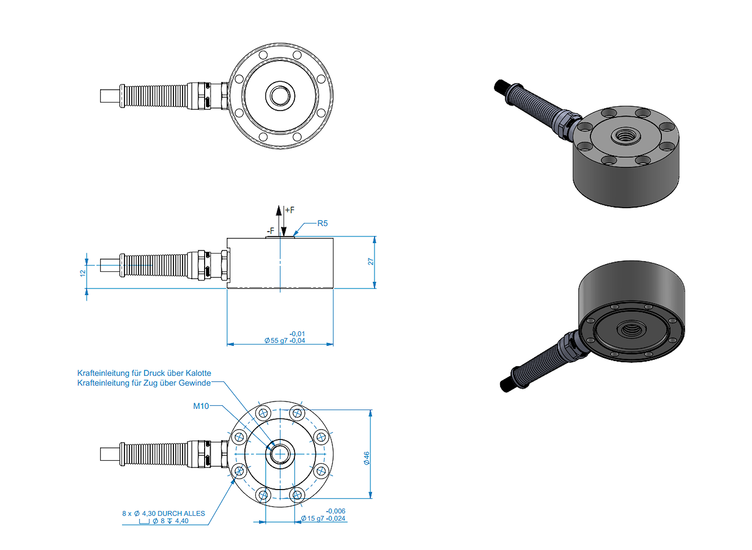

        2d drawing
        Instructions
        Artikelbeschreibung
        • type: ring torsion force sensor
        • nominal force: 1 kN
        • accuracy class: 0,05
        • dimensions: Ø55 mm x 27 mm
        • force introduction: internal thread M10
        • connection: 2,1 m Unitronic FD CP TP Plus / 2x2x0,25
        • material: stainless steel
        • weight: 300 g
        Highlights
        • compact dimensions diameter 55mm x 27 mm
        • accuracy class 0,05
        • robust cable suitable for drag chains
        • continuous thread M10 for the introduction of tension / compression



        Product description

        Due to its compact design, the KR55 ring torsion force sensor is ideally suited for testing tasks in quality assurance and materials testing.

        The KR55 force sensor is available in versions with tensile forces and compressive forces from 1kN to 10kN. The 20kN variant can be loaded up to 20kN in compression and up to 10kN in tension.
