        Art.Nr.: 11950

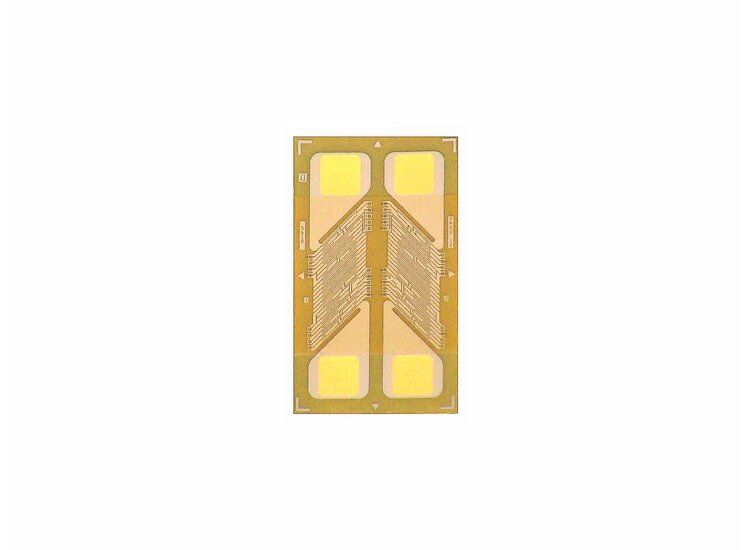

        N5K-06-S5064Q-10C/DG/E3

        • Strain gauge T rosette (-45 °, + 45 °), 1000 ohms ± 0.2%
        • Connection: soldering pad

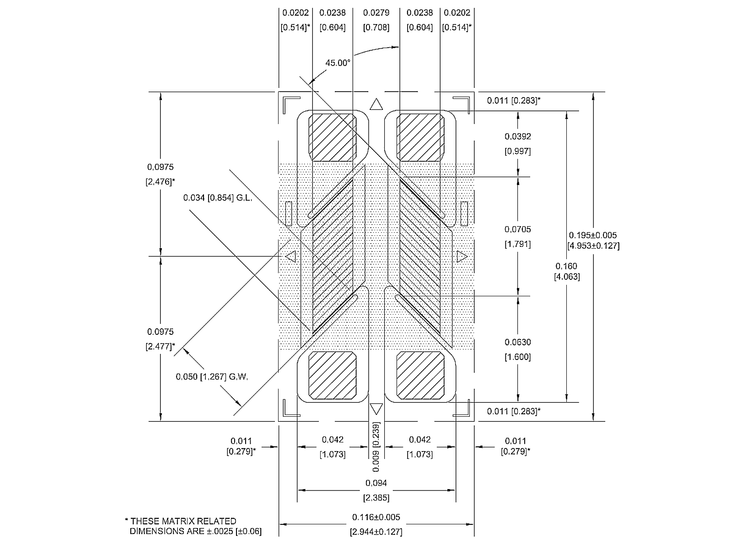

        • Dimensions 4.95 mm x 2.94 mm
        • Grid length 0.85 mm
        • Grid width 1.3 mm
        • Temperature compensation steel (10.8 ppm / ° C)
        • Price per piece
        All details
        Select variant:
        Add to Cart
        Product description
        Datasheet
        Instructions
        Artikelbeschreibung
        • Strain gauge T rosette (-45 °, + 45 °), 1000 ohms ± 0.2%
        • Connection: soldering pad
        • Dimensions 4.95 mm x 2.94 mm
        • Grid length 0.85 mm
        • Grid width 1.3 mm
        • Temperature compensation steel (10.8 ppm / ° C)
        • Price per piece
