        Art.Nr.: 6317

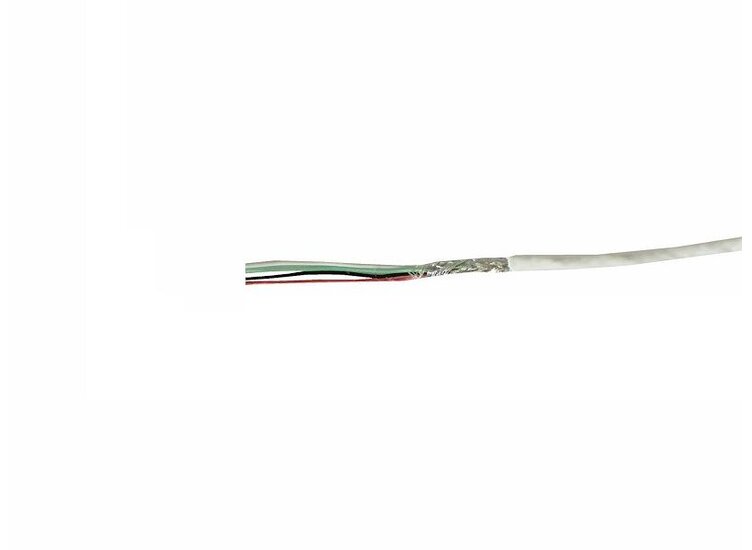

        STC-36T-4 xm

        • Cut, price per meter;
        • Number of cores: 4;
        • Coat: PFA;
        • Cross-section stranded wire: 0.0127mm²;
        • Strand type: finely stranded / copper;
        • Shielding: Cu, silver plated;
        • Outer diameter: Øa = 1.16mm ± 0.15mm;
        • Temperature range: -196 ° C to + 200 ° C;
        • Bending radius dynamic: 15x outside diameter;
        • Bending radius static: 2x outside diameter;
        All details
        Add to Cart
        Product description
        Instructions
        Artikelbeschreibung
        • Cut, price per meter;
        • Number of cores: 4;
        • Coat: PFA;
        • Cross-section stranded wire: 0.0127mm²;
        • Strand type: finely stranded / copper;
        • Shielding: Cu, silver plated;
        • Outer diameter: Øa = 1.16mm ± 0.15mm;
        • Temperature range: -196 ° C to + 200 ° C;
        • Bending radius dynamic: 15x outside diameter;
        • Bending radius static: 2x outside diameter;
