Art.Nr.: 5894

GSV-6L

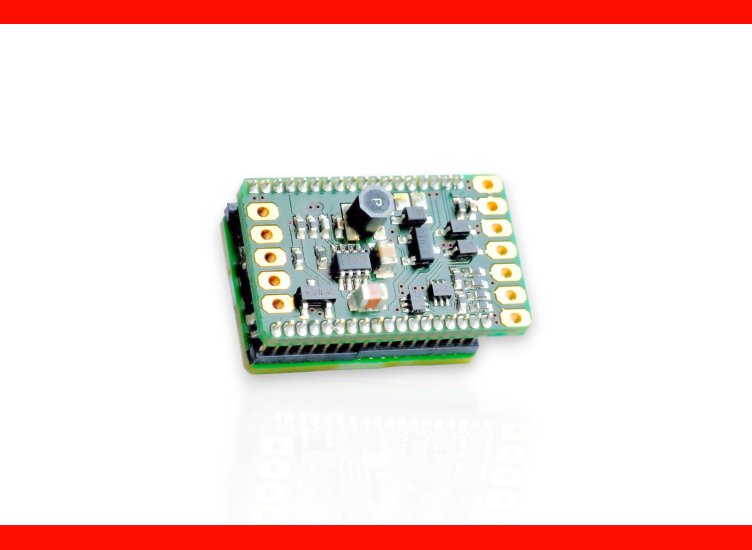

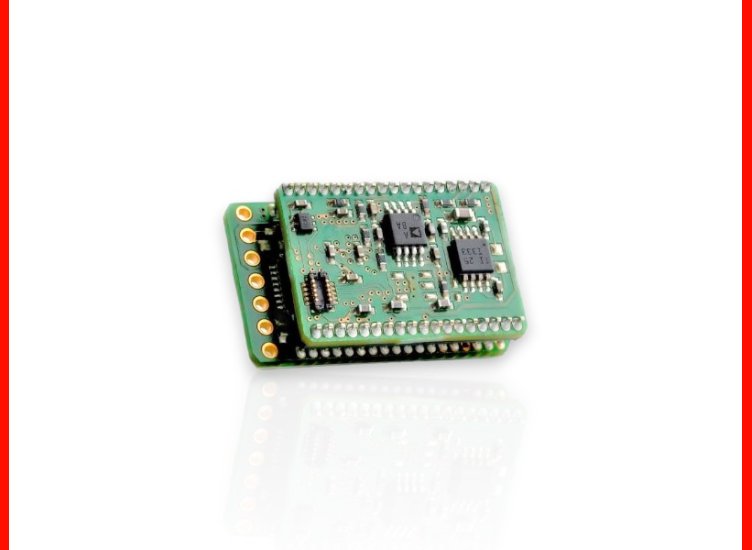

1 - channel straingauge amplifier PCB
connection: solder connection

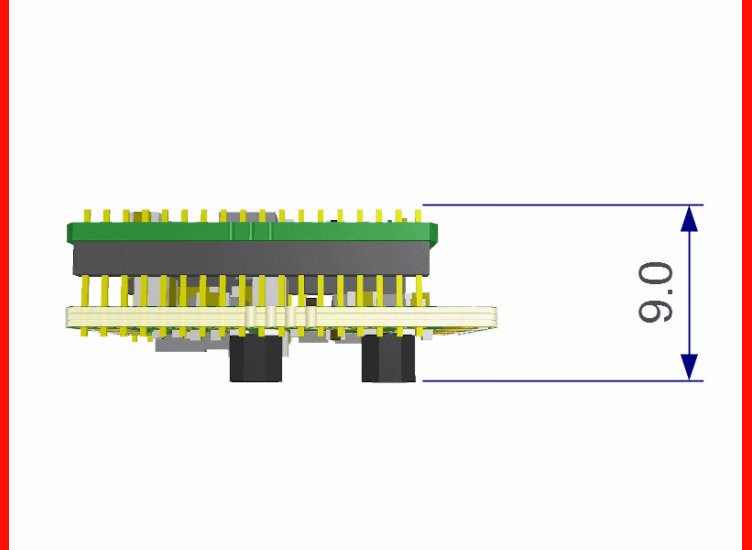

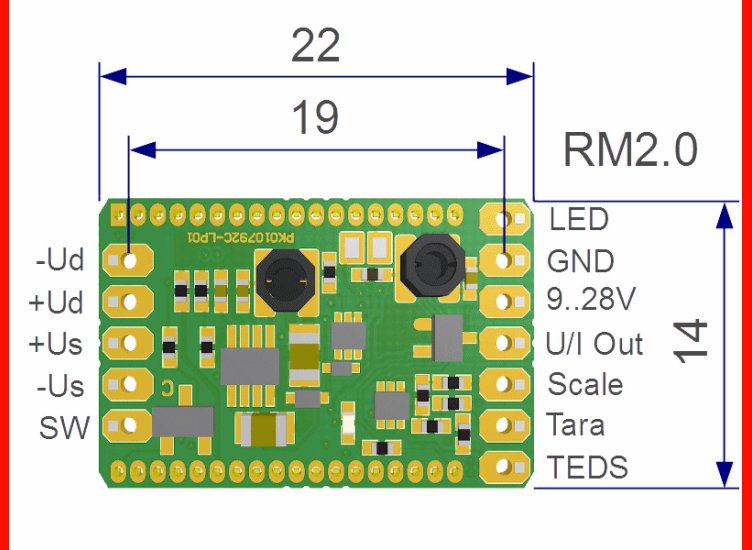

dimensions: 22 mm x 14 mm x 9 mm
analog output: -10V ... + 10V or 4 ... 20mA
input sensitivity: 0.1mV / V ... 8 mV/V
interface: TEDS
Data frequency 1 Hz ... 25 kHz
supply voltage: 12V ... 24V DC
Configuration via two control lines "Tara" and "Scale"
weight: 9 g
environmental protection: IP00/IP66

The measuring amplifier GSV-6L converts the strain gauge signal of force sensors, torque sensors, pressure sensors and strain sensors into an analog output signal.
The GSV 6L is integrated in the sensor body.
The GSV 6L is configurable to 100%. It allows current or voltage output, the shift of the zero point, setting the sample rate, the selecting of low-pass filters.
With a sampling rate of 50ks / S of the GSV-6L is the fastest and smallest measuring amplifier of its kind.

All details

Product description

Datasheet

3D Models

Instructions

Artikelbeschreibung

1 - channel straingauge amplifier PCB
connection: solder connection
dimensions: 22 mm x 14 mm x 9 mm
analog output: -10V ... + 10V or 4 ... 20mA
input sensitivity: 0.1mV / V ... 8 mV/V
interface: TEDS
Data frequency 1 Hz ... 25 kHz
supply voltage: 12V ... 24V DC
Configuration via two control lines "Tara" and "Scale"
weight: 9 g
environmental protection: IP00/IP66

Product description

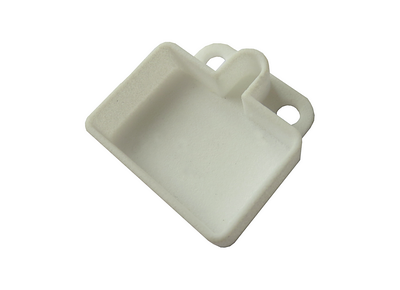

The GSV-6L amplifier supplements the GSV-6CPU with a configurable one analog output. The GSV-6L is designed for integration in sensors and in the Integration in housings with the smallest possible dimensions, such as connector housing, type "GSV-6K". Even after potting, all properties of the GSV-6L can be achieved over two Completely configure control line "Tare" and "Scale". Via TEDS input, the calibration data is taken from the electronic data sheet the sensor is taken over automatically. The analog output will then open automatically the slope stored in the TEDS is adjusted.
