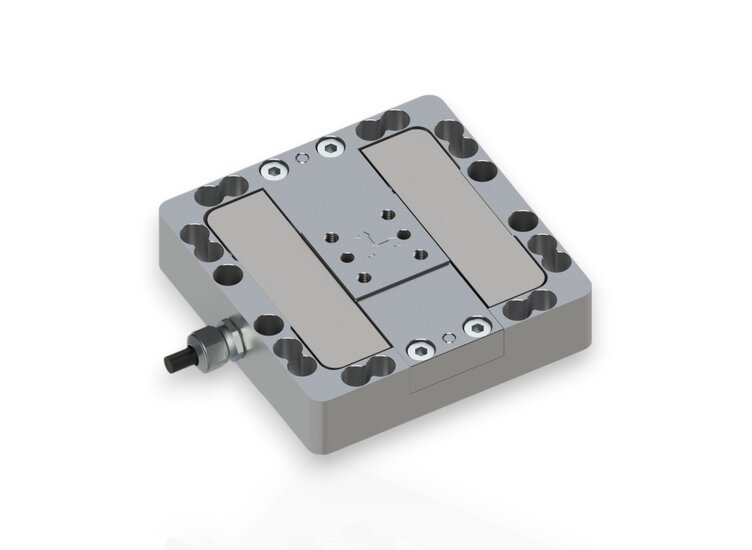

The 3-axis force sensor K3D120 is suitable for measuring force in three mutually perpendicular axes.
It is ready for 50 N to 5 kN in all three axes and can optionally be manufactured in other measurement ranges.
The force sensor is made of high-strength aluminium alloy up to the 1 kN measurement range. From 1 kN onwards, the force sensor is made from the material stainless steel 1.4542 (option "VA").

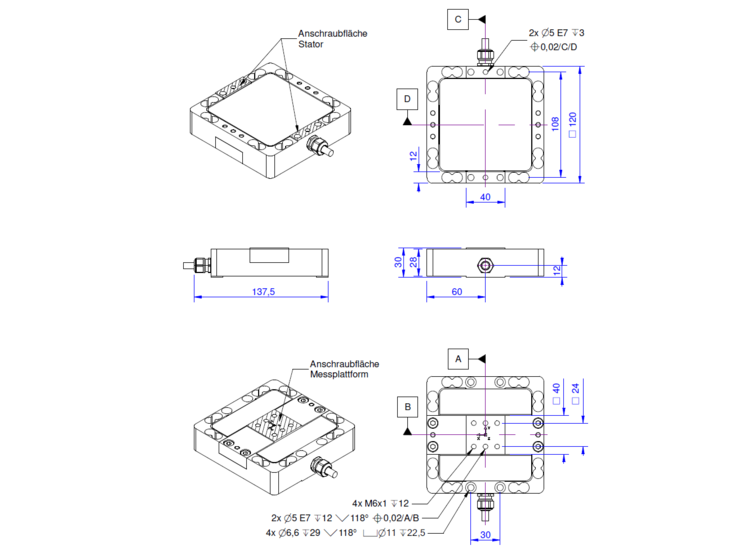

It stands out due to its particularly compact structure, with an area of 120mm x 120mm and a low total height of just 30mm.
Example application areas include force measurement in production processes, force control in handling machines, force measurement in assembly processes, and three-dimensional load measurement.
Option HA (High Accuracy)
