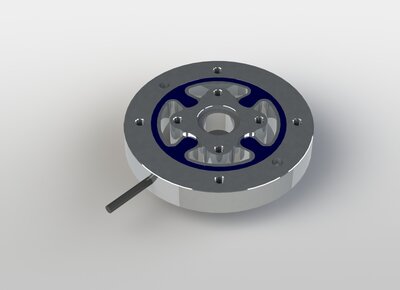

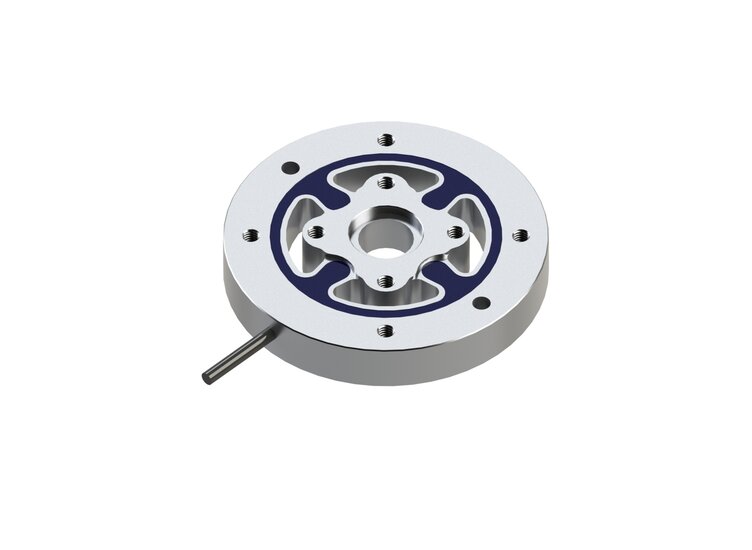

Torque sensor, 2 Nm ... 10 Nm, accuracy class 0,1; Ø 70mm x 10mm 2m cable
Torque sensor, 2 Nm ... 10 Nm, accuracy class 0,1; Ø 70mm x 10mm 2m cable
Art.Nr.: 3101

TS70 2Nm

  • type: torque sensor
  • nominal torque: 2 Nm
  • accuracy class: 0,1
  • dimensions: Ø 70 mm x 10 mm
  • outer circle: 58 mm
  • inner circle: 30 mm
  • inner hole: 12 mm
  • connection: 2 m STC-31V-4
  • material: aluminium
All details
Select variant:
Artikelbeschreibung
  • type: torque sensor
  • nominal torque: 2 Nm
  • accuracy class: 0,1
  • dimensions: Ø 70 mm x 10 mm
  • outer circle: 58 mm
  • inner circle: 30 mm
  • inner hole: 12 mm
  • connection: 2 m STC-31V-4
  • material: aluminium
Highlights
  • Drive held exclusively by the sensor
  • Measurement of the reaction torque
Product description

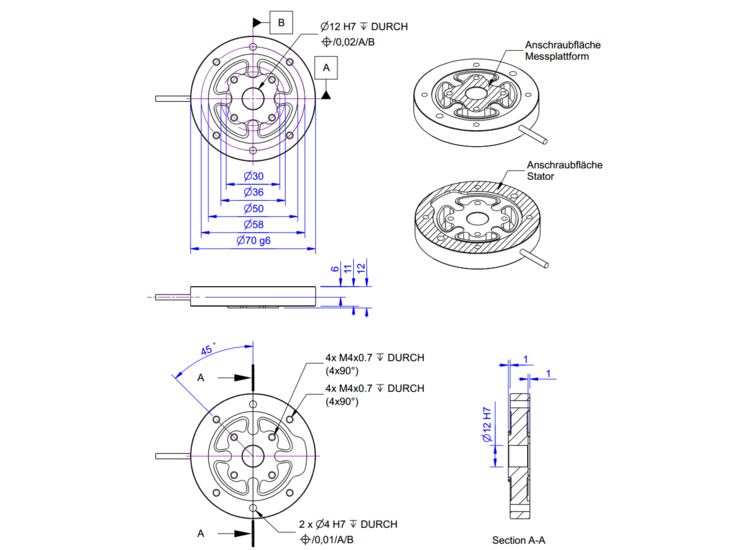

The torque sensor consists of an outer flange and an inner flange which are connected by
4 shear beams. Outer and inner flange have 4 threads M4 each for torque introduction.
The sensor is suitable for measurement of reaction moment in drives and teststands.
