K3D60a 10N

Product description

Datasheet

3D Models

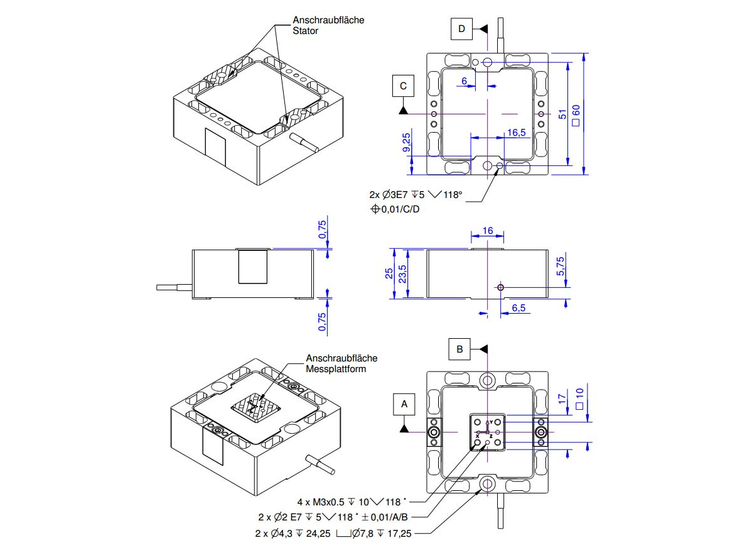

2d drawing

Instructions

Artikelbeschreibung

type: 3-axis-force sensor
nominal force: Fx: 10 N, Fy: 10 N, Fz: 10 N
accuracy class: 0.5
dimensions: 60 mm x 60 mm x 25 mm
force transmission: 4 x female screw thread M3x0,5; 2 x drill hole 2 mm E7
connection: 3 m MESC-12x0061-PUR
material: aluminium alloy

Option HA (High Accuracy)

HA - advantages:

high precision, the accuracy class is increased up to approximately 0.1
selection of the sensors
use of special calibration accessories
repeated calibration tests
careful configuration and calibration process
better adjustment inside the sensor and on the testing machine

Product description

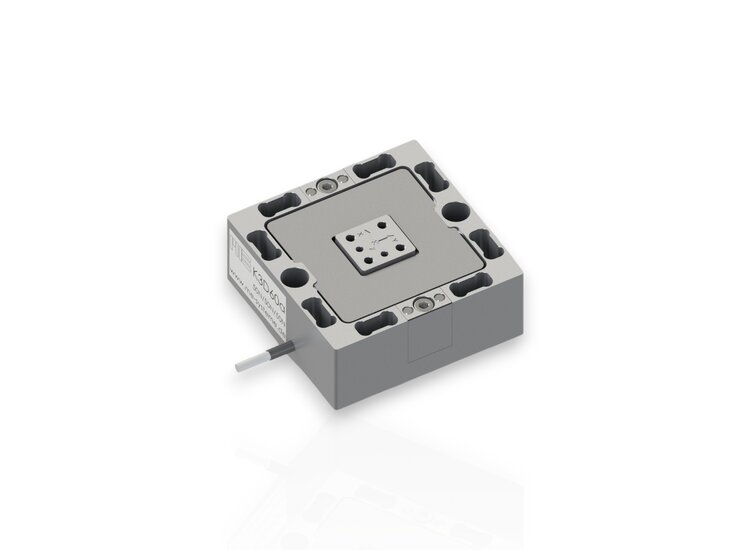

The K3D60a three-axis sensor is suitable for measuring force on three mutually perpendicular axes.

The new 3-axis sensor K3D60a is a further development of the series K3D60 and it is available in the measuring ranges 20N to 500N.
Up to a rated load of 100N, these sensors are made of aluminum, from a rated load of 200N these force sensors are made of stainless steel.

The sensor K3D60 (11/2009 ... 02/2016) 2016 was replaced by the improved implementation K3D60a.
